Busbar Kit for Nissan Leaf 51Vdc Battery Pack
Regular price
$49.00 USD
Regular price
$79.00 USD
Sale price
$49.00 USD
Unit price
per
Couldn't load pickup availability
NOTE: Nissan LEAF modules and BMS sold separately.
This kit includes the busbars and bolts needed to build a 51Vdc battery pack with Nissan LEAF modules. It is a 7s module configuration which makes it 14 cell in series. See "Capacity" variants for number of modules in parallel, 2P, 4P, 6P, etc.
For example, a 2P variant has busbars with 2 holes and 4 holes and a 4P variant has bus bars with 4 holes and 8 holes, etc... See photos for bus bar arrangement.
If you don't find what you are looking for, let me know and I can do a custom busbar set for you.

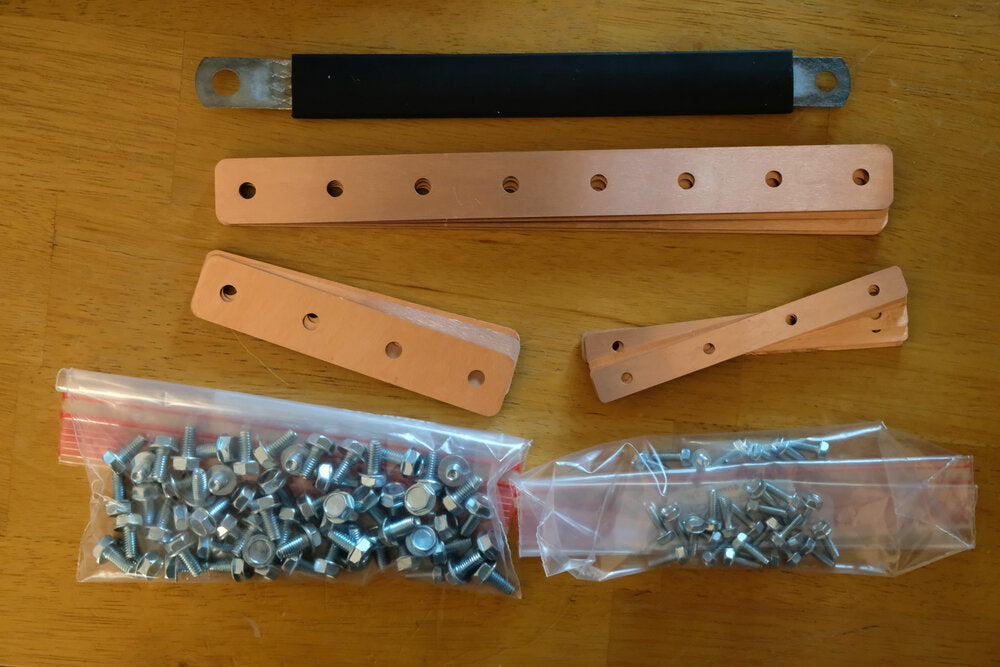

See photos here for the 4P variant, notice it has some bus bars with 4 holes and 8 holes.
Busbar Kit includes:
- All copper busbars between cells/modules
- Terminal busbars (long and short)
- Center tap busbars
- Jumper (to connect in the middle of the pack)
- Hardware to connect busbars to the modules
- Terminal bolt and lock washer
- Center tap bolt and lock washer
Sold Separately:
- Power cables after the pack to connect to BMS or inverter
- Weatherproof enclosures
- Wiring/connections for BMS
- BMS, fuses, contactors, etc.
Technical Resources:
Learn more about how to wire the Nissan LEAF pack.
