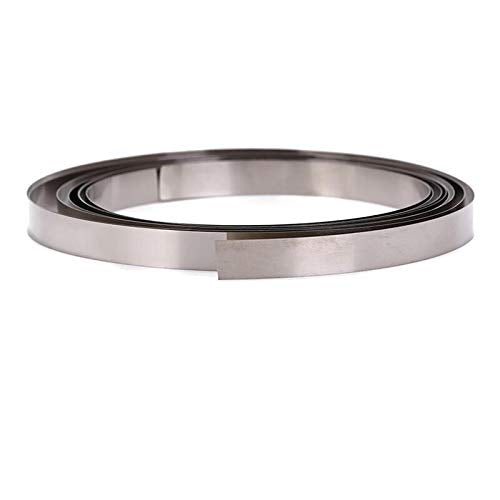

Busbar strips for 18650 Lithium, Pure Nickel strips roll for spot welding

Main application

• cell to cell battery connections
• lead-out sheet
• Good for nickel-metal hydride batteries, lithium batteries, tabs, power tools, battery packs, polymer batteries, power batteries and instrumentation, telecommunications, vacuum, special light bulbs and other industries.

Size

0.12 mm thick x 8 mm wide. Choose the roll length in the options above.

Using This Strip

This is pure nickel strip for spot welding cylindrical cells such as 18650, 21700, and 32140.

• Current: plan on about 5 A continuous per strip path between cell groups. For more current, use more strip paths, stack two layers, or add copper under the nickel.
• Welding: spot weld only, never solder to a cell. Start at your welder's lowest setting and test on a scrap cell first. A good weld tears the nickel when you pull the strip off.
• Pure vs plated: leave a cut piece in salt water overnight. Pure nickel stays clean; nickel-plated steel rusts at the cut edge.
