Internal Resistance Tester - TR1035
Internal Resistance Tester - TR1035
Couldn't load pickup availability
Share

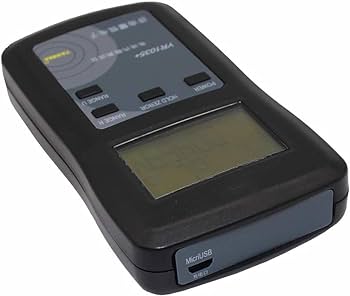

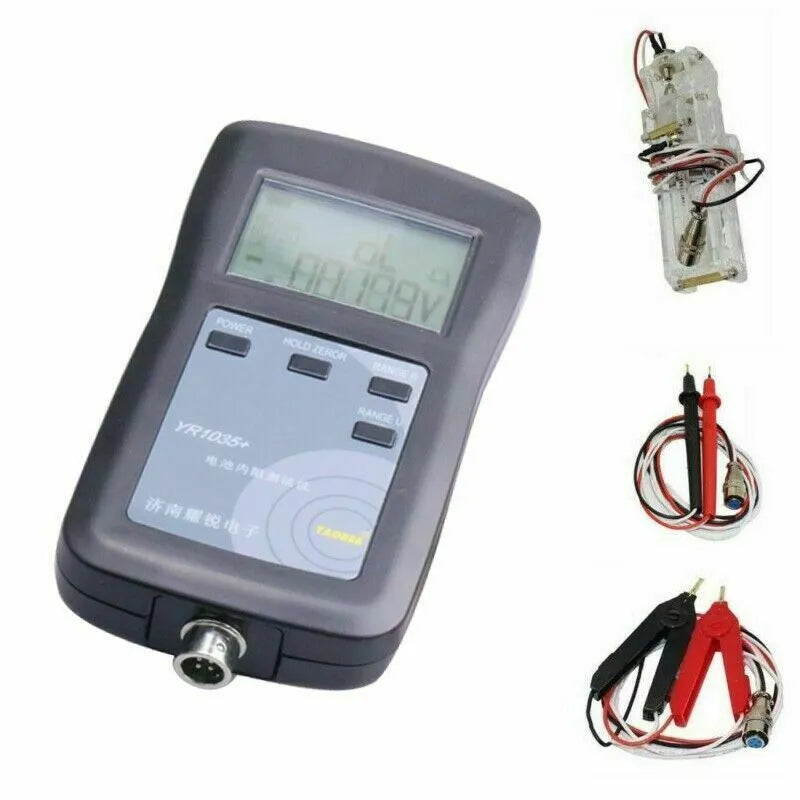

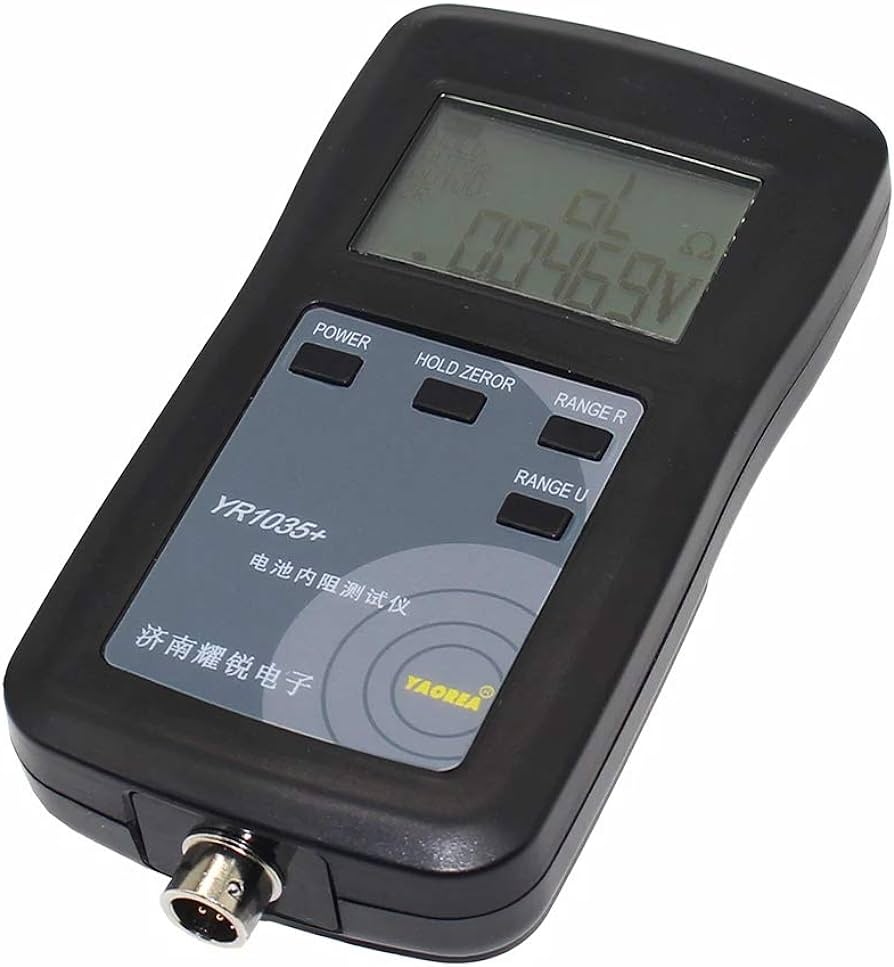

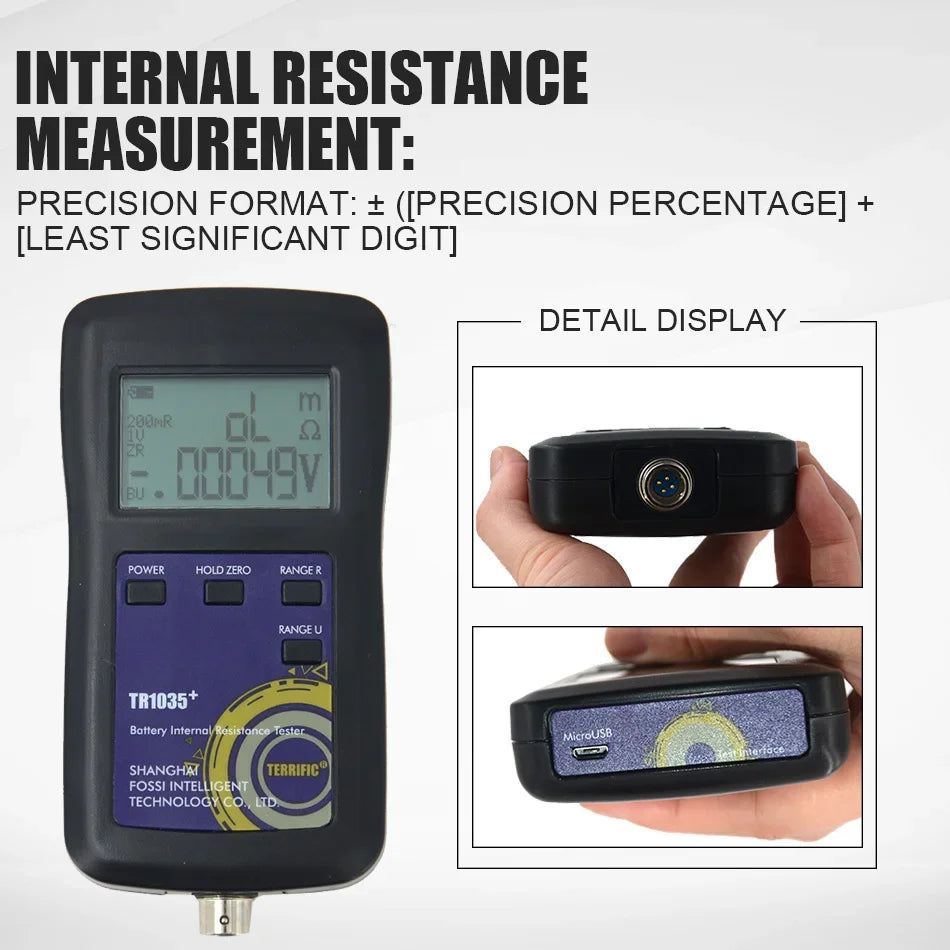

Introducing the Internal Resistance Tester - TR1035, a cutting-edge digital device designed for precision in battery analysis. This handheld tester measures the internal resistance and AC impedance of various battery types, ensuring optimal performance and longevity.
With a user-friendly interface, the TR1035 also functions as a voltage meter, making it an essential tool for matching cells in a string. Its compact design allows for easy portability, while the 0.5-meter test line provides flexibility during use. Experience accuracy and reliability with the TR1035, your go-to solution for battery testing.
Specifications

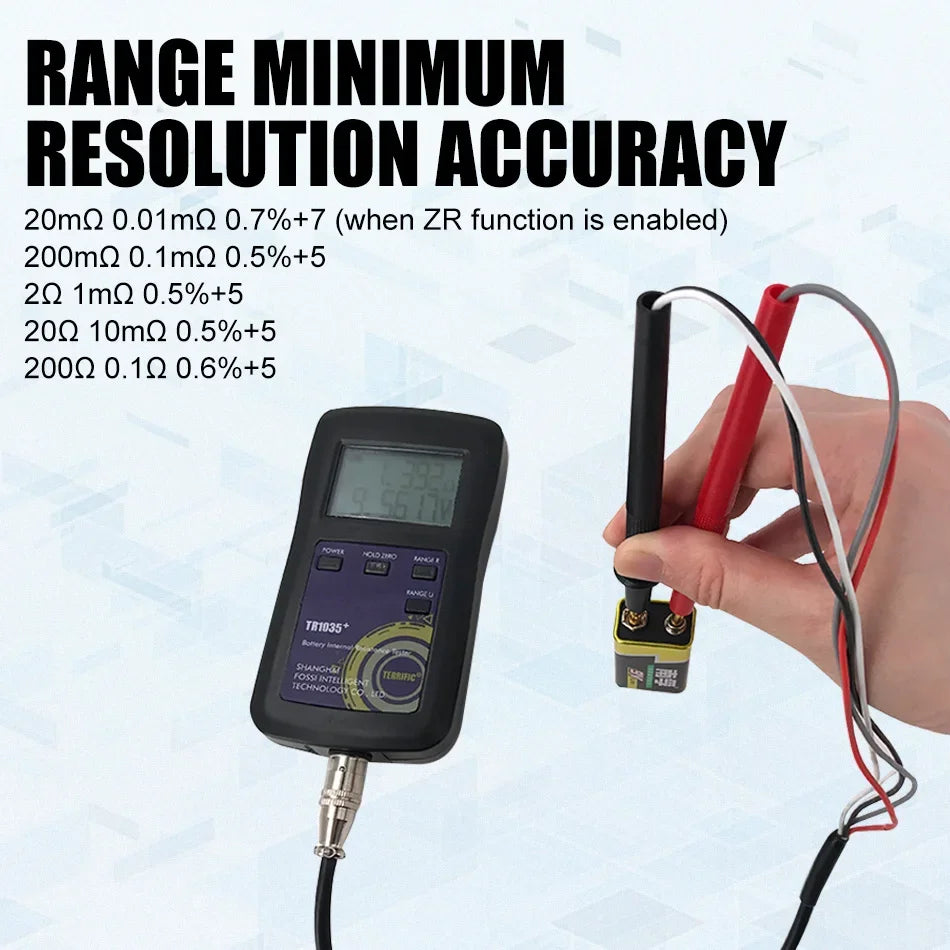

Range minimum resolution accuracy
- 20mΩ 0.01mΩ 0.7%+7
- 200mΩ 0.1mΩ 0.5%+5
- 2Ω 1mΩ 0.5%+5
- 20Ω 10mΩ 0.5%+5
- 200Ω 0.1Ω 0.6%+5

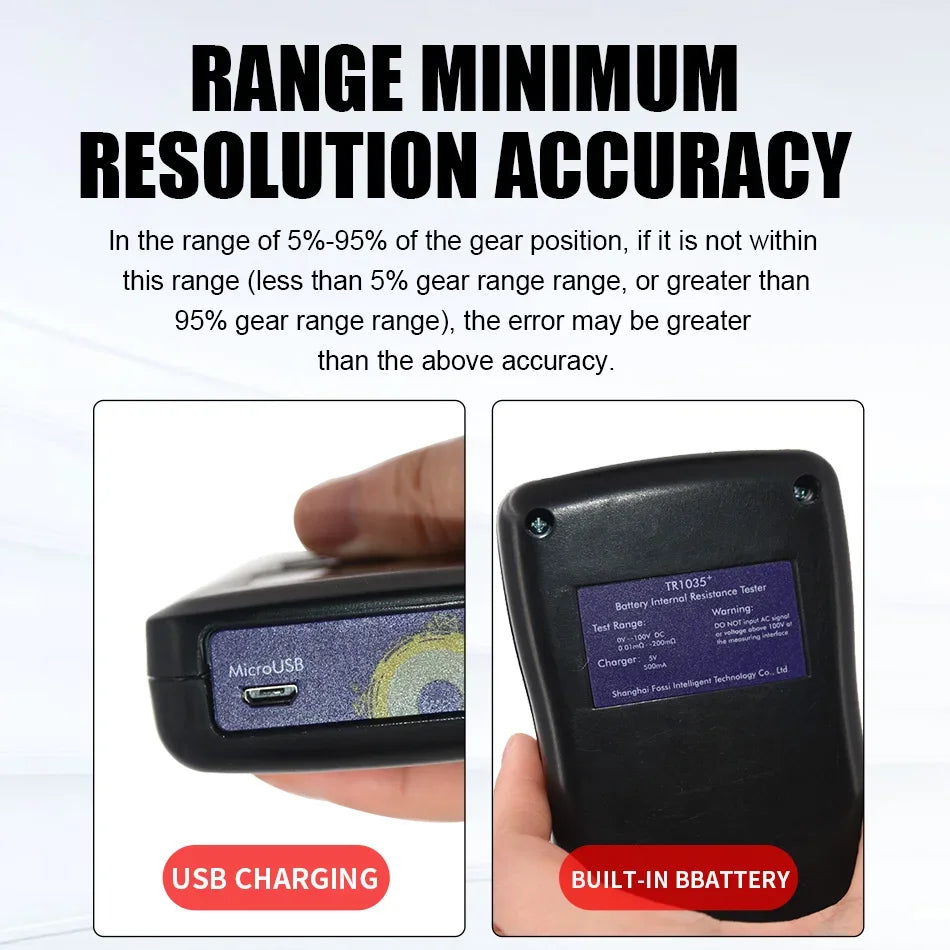

In the range of 5%-95% of the gear position, if it is not within this range (less than 5% gear range range, or greater than 95% gear range range), the error may be greater than the above accuracy.
Range Accuracy ± (% reading + % range)
- 1V 0.35+0.015
- 10V 0.30+0.010
- 100V 0.30+0.015

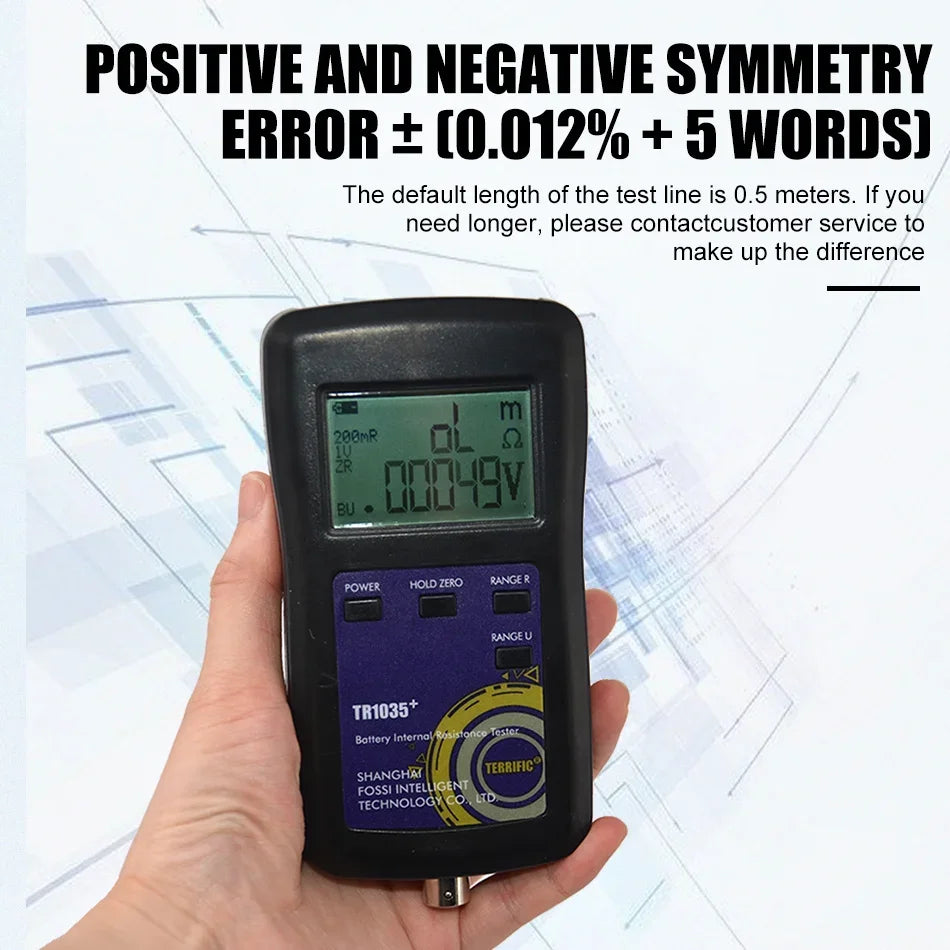

Positive and negative symmetry error ± (0.012% + 5 words)
Temperature drift within normal use temperature (10 ° C -40 ° C) 100ppm / ° C
This product is AUTO-ZERO and calibrated before leaving the factory, so NO NEED to RESET/ZERO manually
Shipping Details:
- Shipping time is 3~5 days, when out of stock reorder time is 15~18 days
