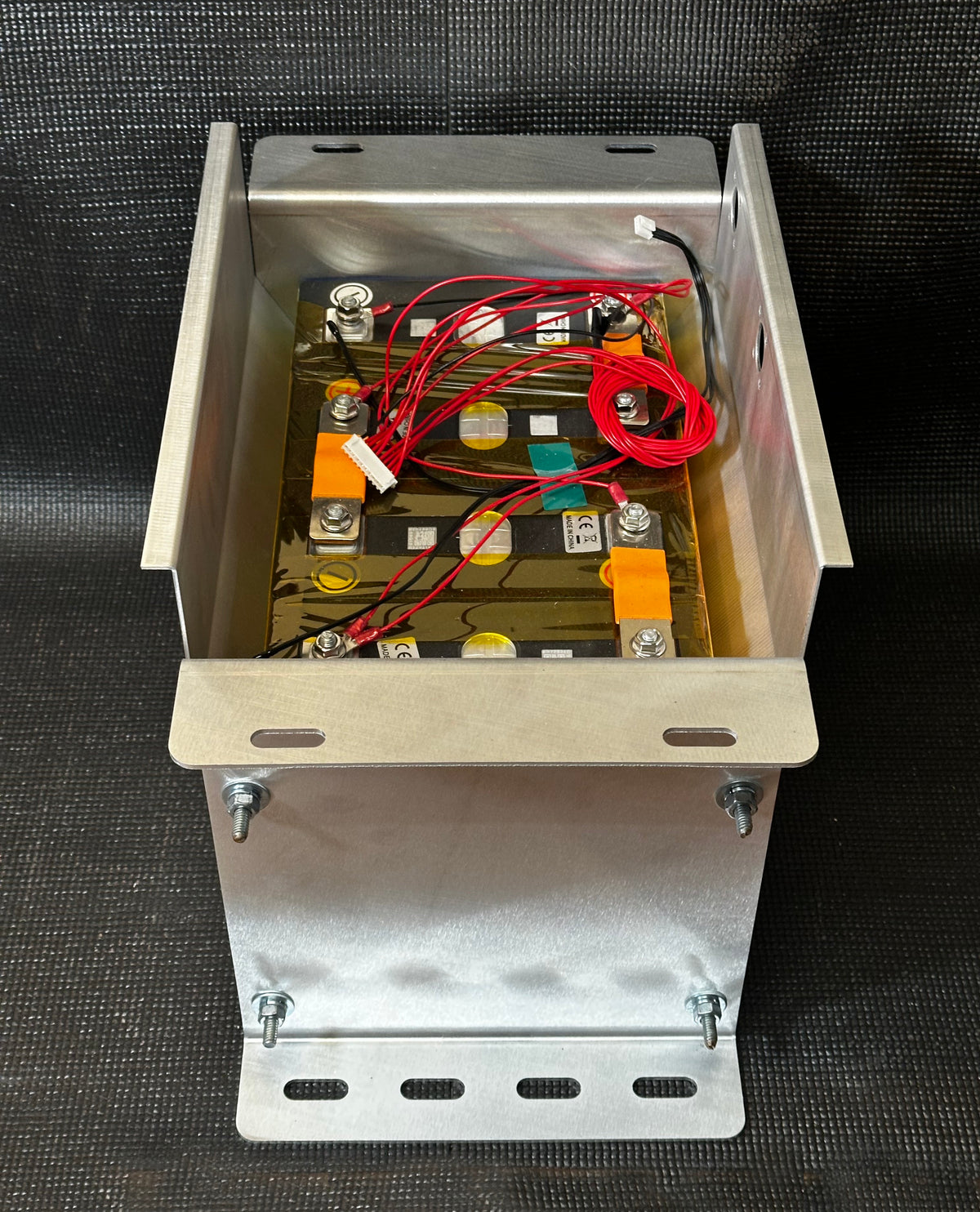

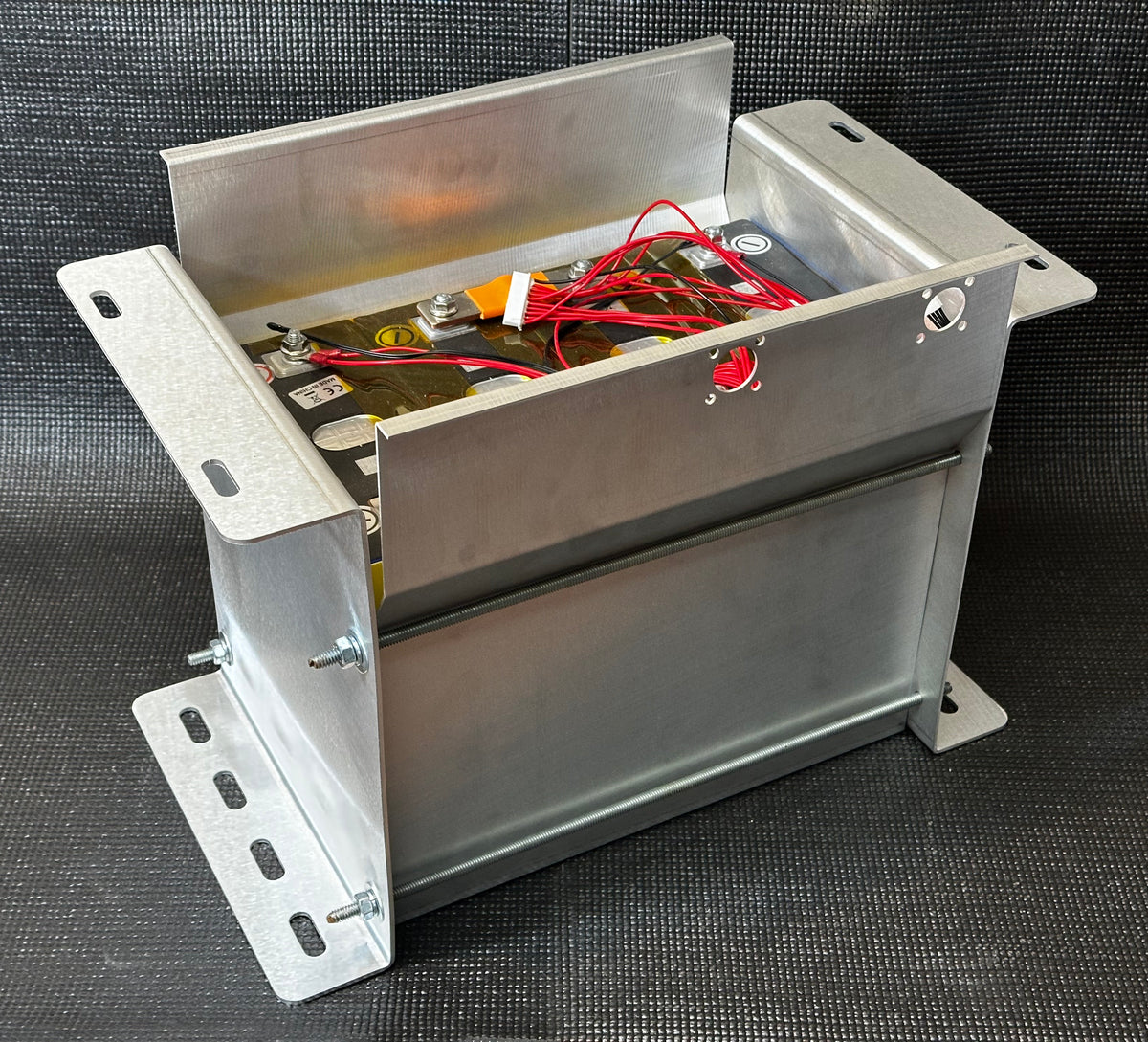

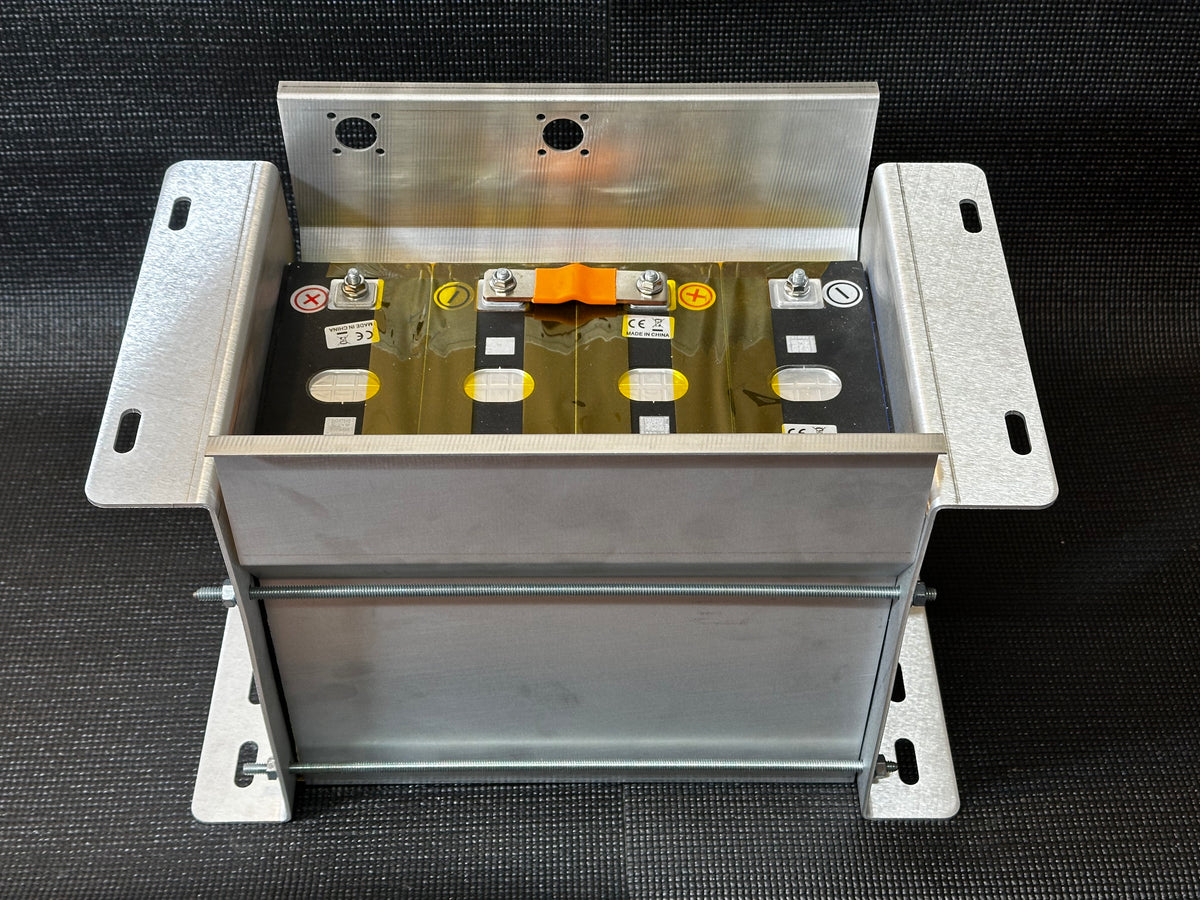

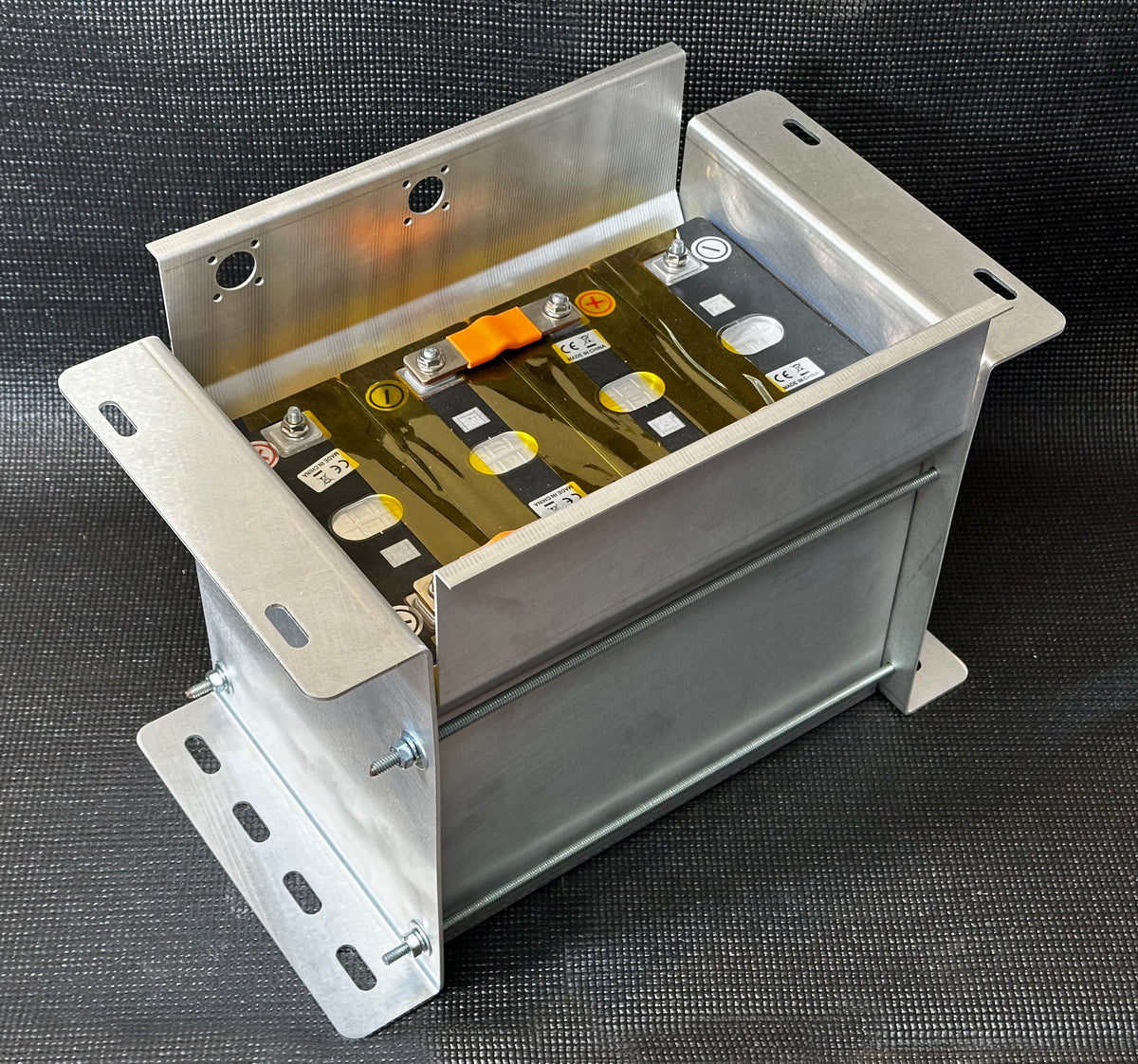

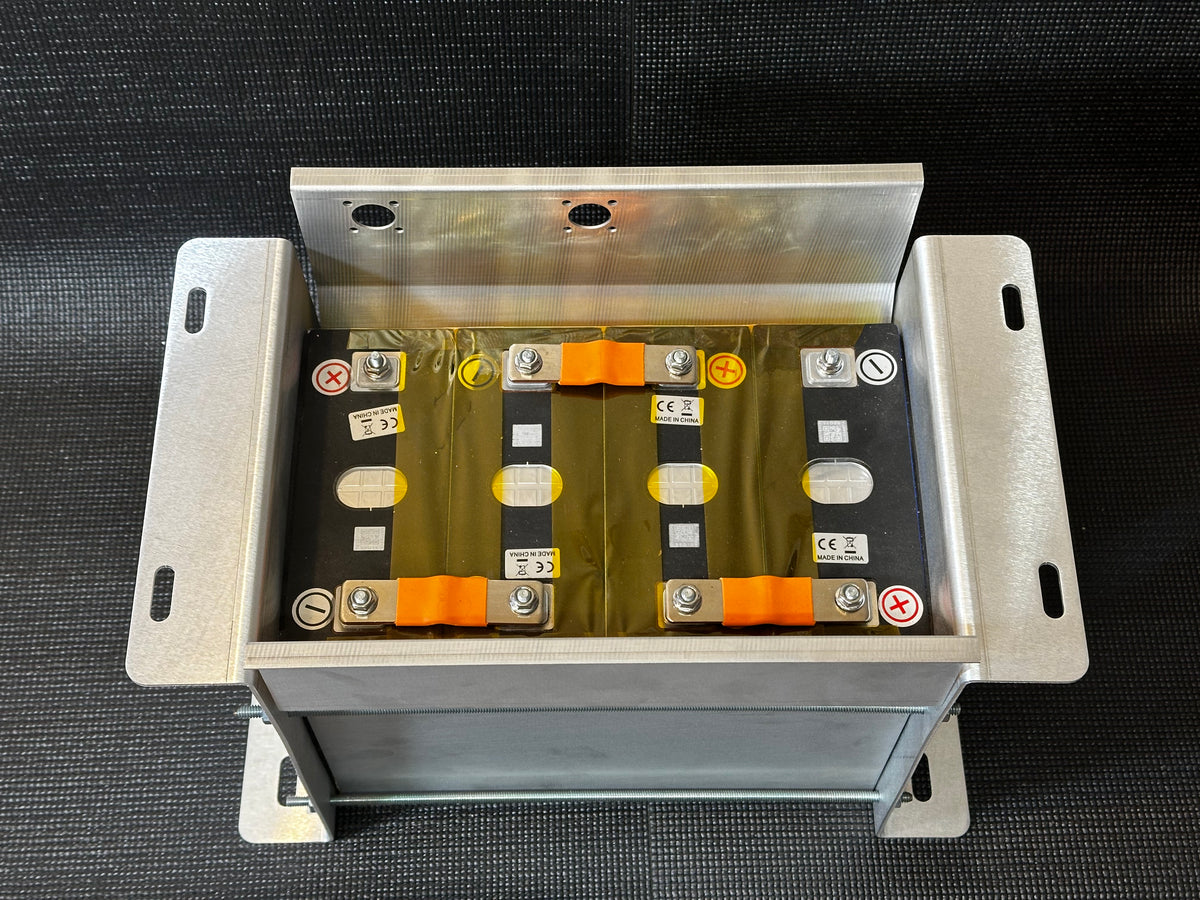

Everything you need to clamp, insulate, connect and cover one row of prismatic cells, in one box. Pick your pack size: 4S 12V, 8S 24V or 16S 48V. Fits the standard 174 x 72 x 204 mm case used by 280Ah to 320Ah LFP and sodium-ion cells.
What's in the box
Part
4S 12V
8S 24V
16S 48V

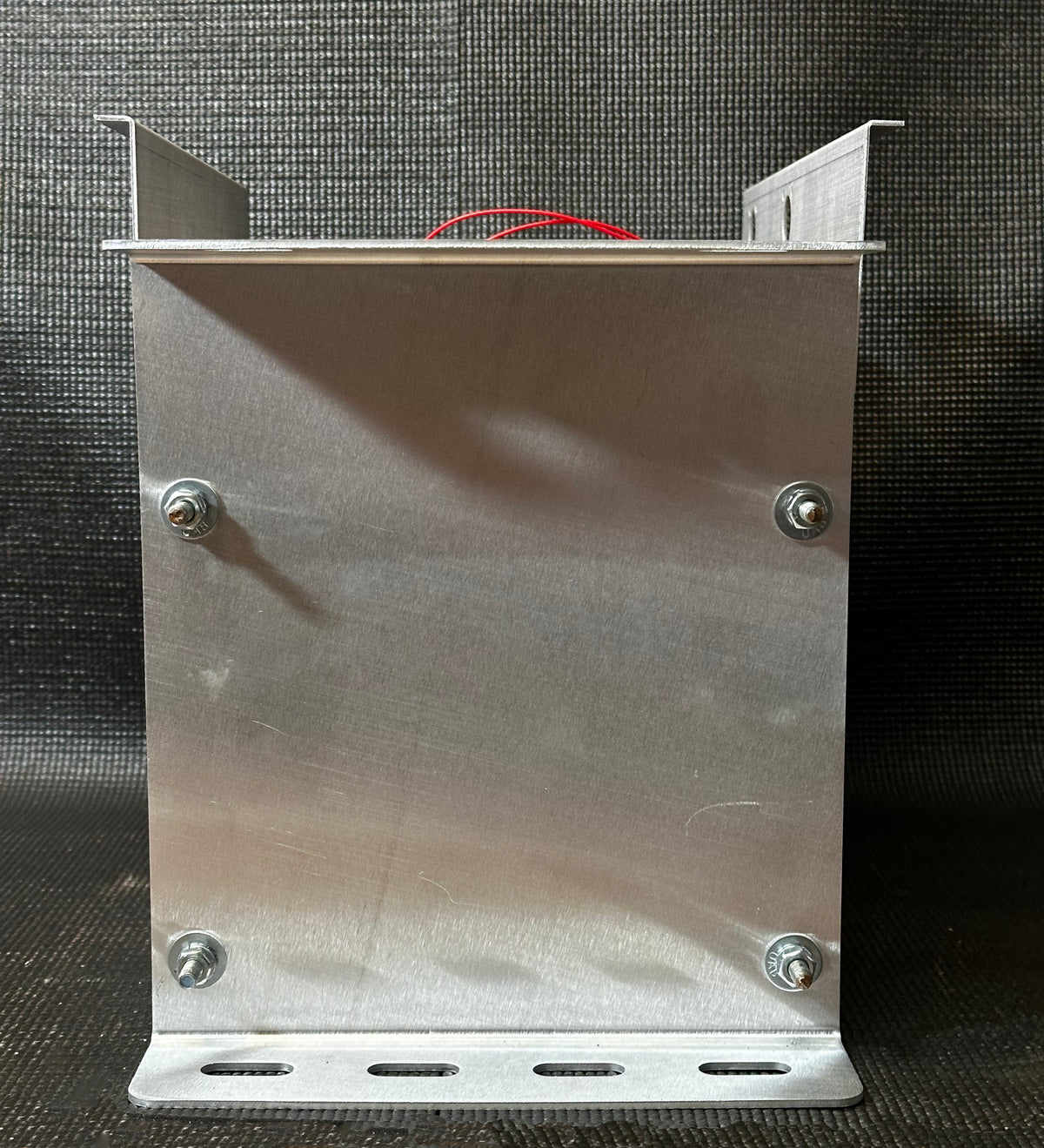

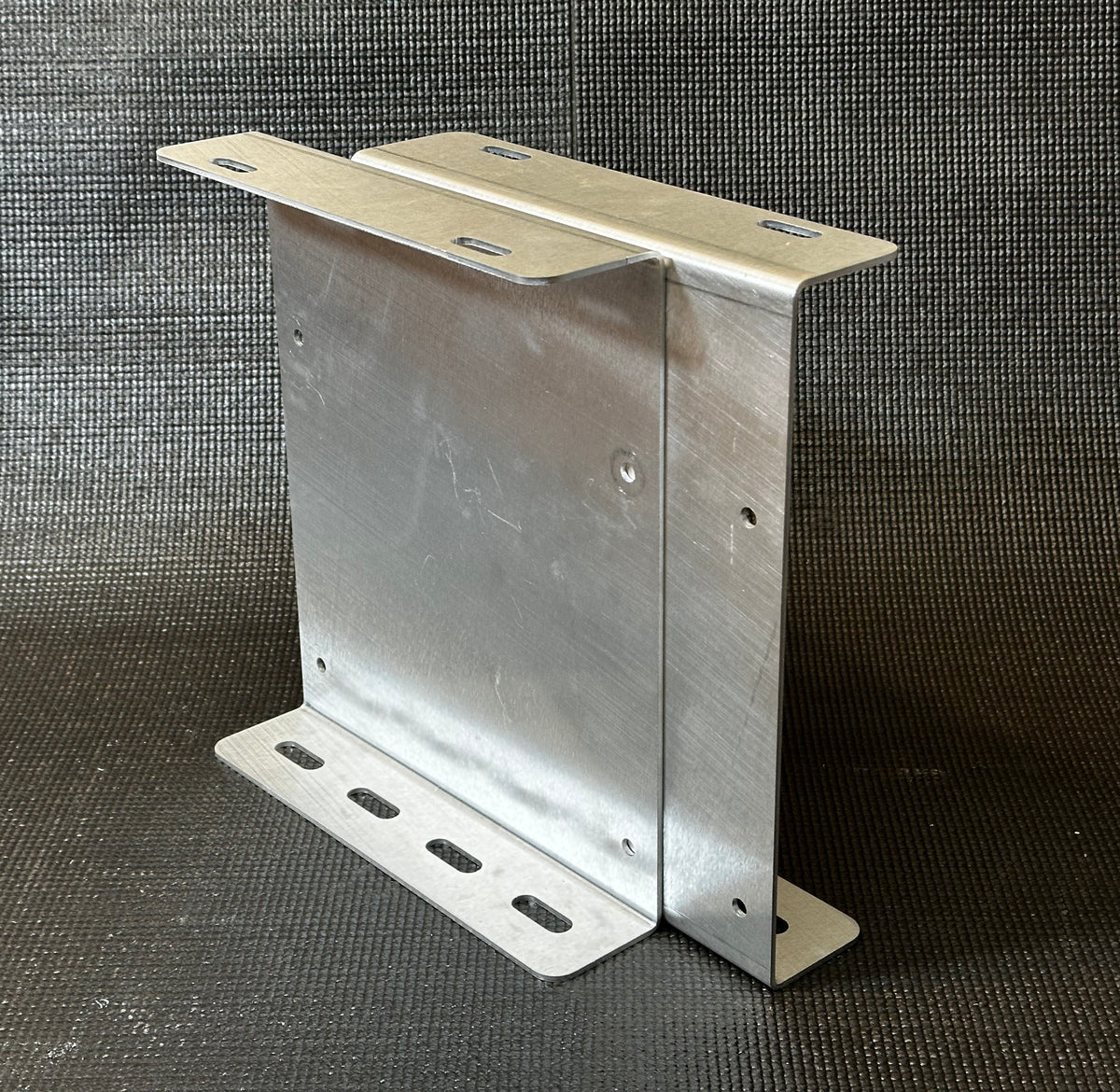

Aluminum compression plates, 1 cell wide (pair)
1
1
1

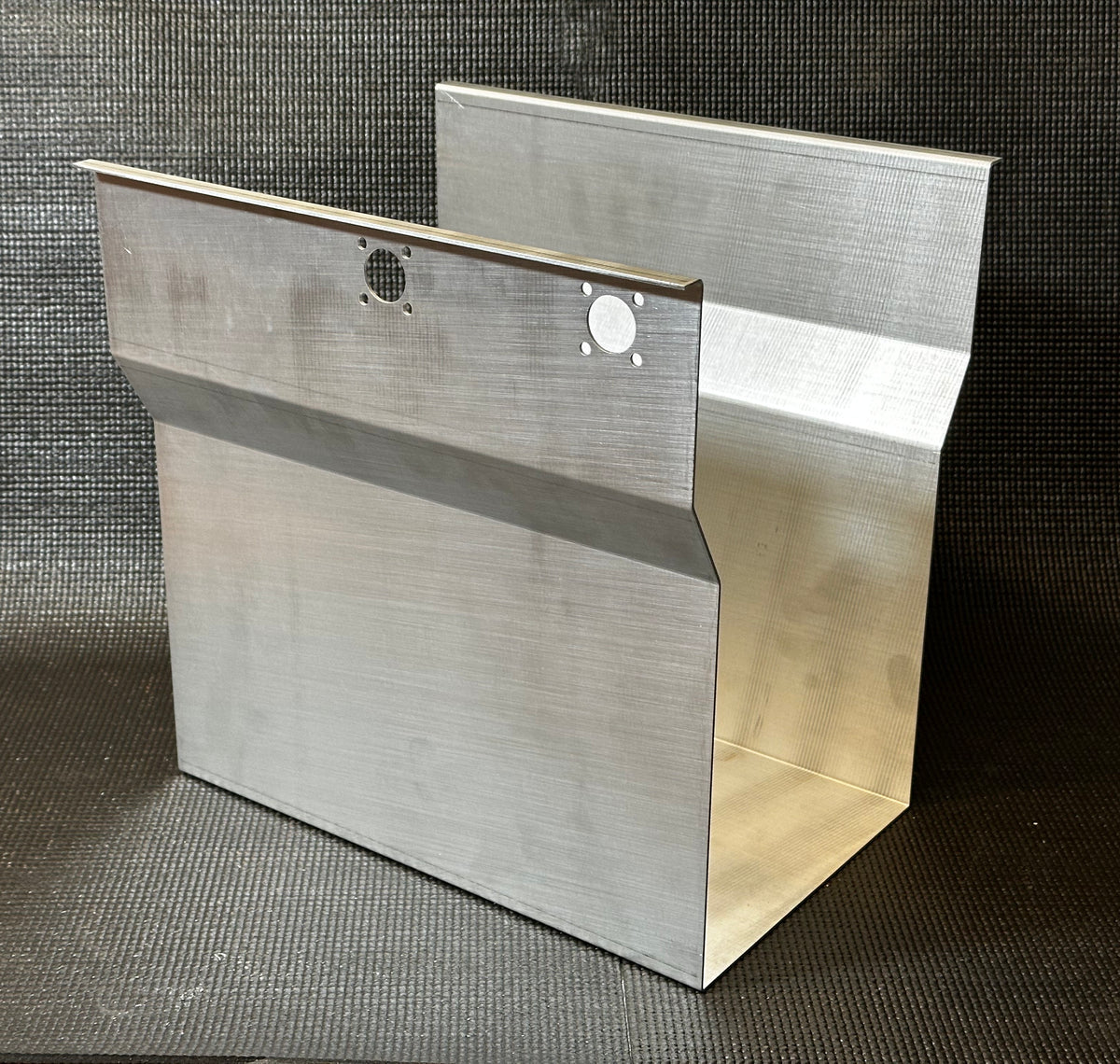

Aluminum battery covers, one per 4 cells
1
2
4
Flexible copper busbars, M6, 72-74 mm
3
7
15
Insulating epoxy dividers with adhesive, one between each cell
3
7
15
EVA foam dividers, 3 mm, between the end cells and the plates
2
2
2
Plates and covers are Natural Aluminum. On 8S and 16S the covers sit end to end over one long row; a 16S row is about 1.2 m (48 in) long.
You supply
4S 12V
8S 24V
16S 48V

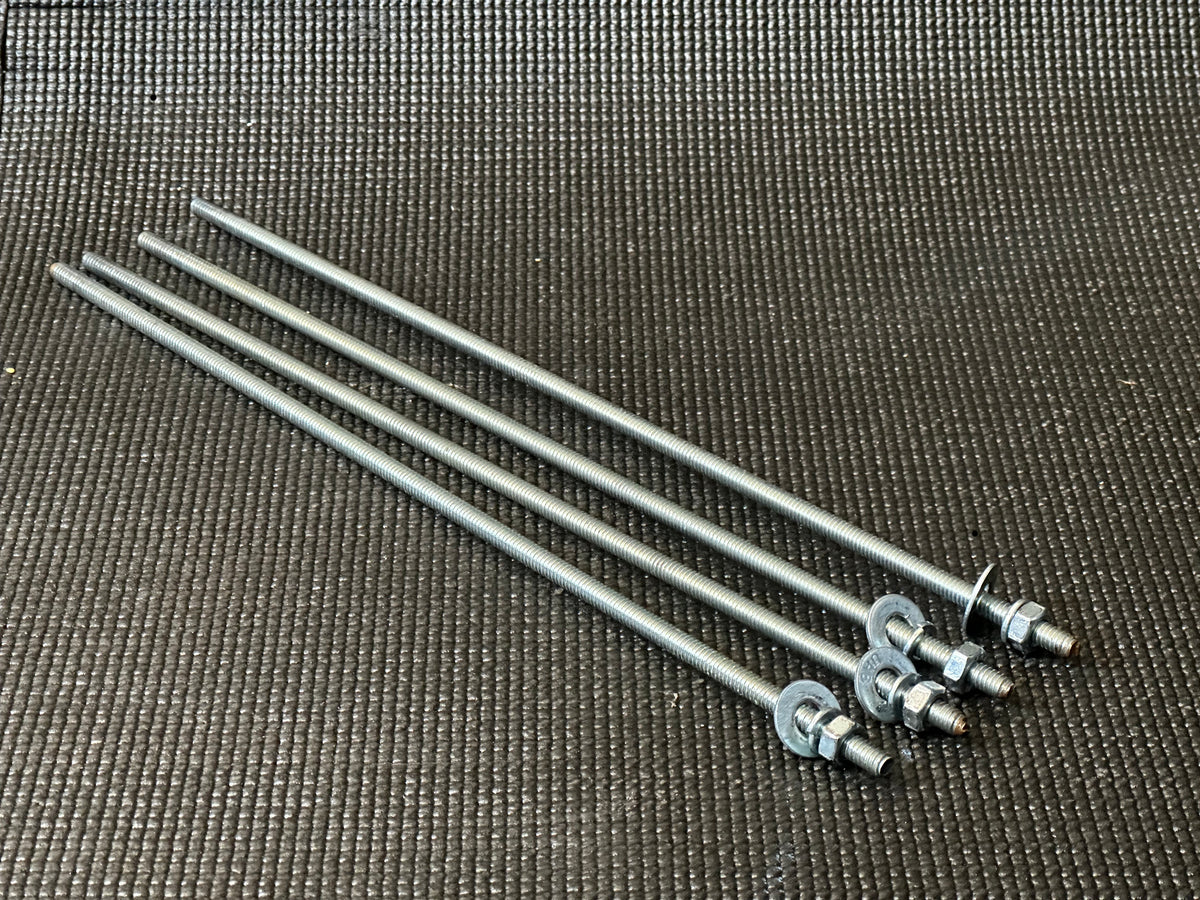

1/4-20 threaded rod, 4 lengths, minimum length
14 in (355 mm)
26 in (660 mm)
50 in (1,270 mm)
Stainless spring edge clips for 1/16 in panels, to join covers
none
2
6
Nuts, 1 in OD fender washers and sleeving for the rods (8 nuts and 8 washers)
Your cells, BMS and battery cables
Plates and covers are designed in Michigan and made in the USA. Built to order: Natural Aluminum ships in about 7 business days.
