2P Flexible Busbar for 280Ah Prismatic Cells, 200A - 4 holes

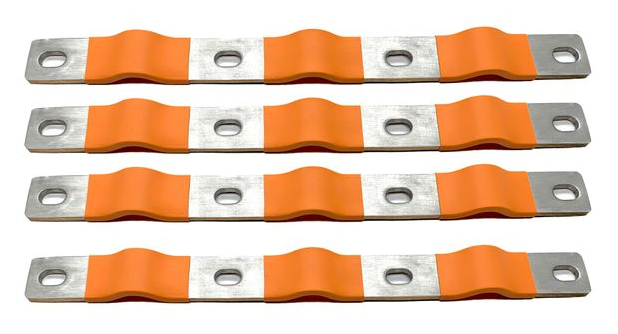

Flexible busbars specifically designed for prismatic cells.

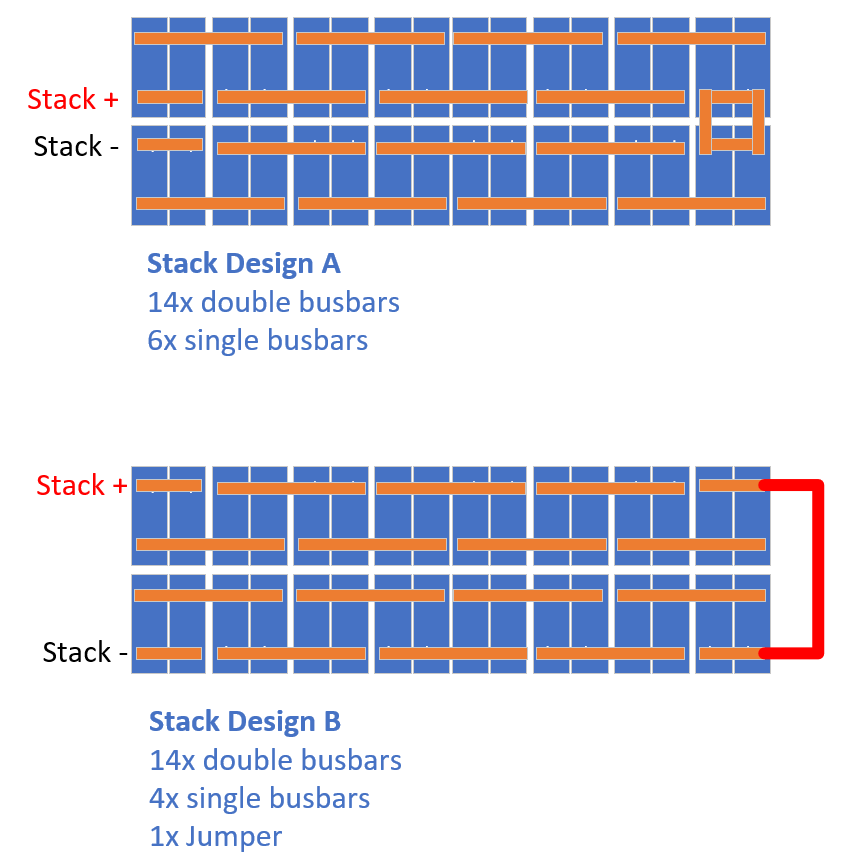

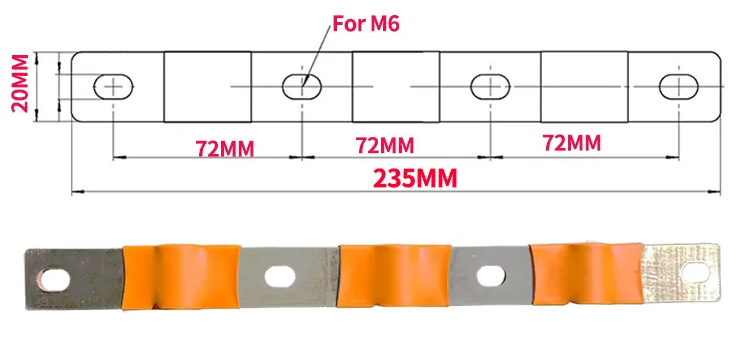

Are yo building a 2P pack using two cells in a P-group? These flexible copper busbars are designed for connecting 4 terminals of 280Ah Prismatic LiFePO4, Lithium, Li-ion cells. The dimensions are length of 235mm, a width of 20mm, and a thickness of 2mm. The soft connection design provides protection to the screw without exerting excessive force.

With a hole distance of 72mm, these busbars offer sufficient flexibility to accommodate a wide range of hole spacing requirements. The mesh weaving ensures a soft, durable, and fold-resistant structure, allowing for easy bending and adaptation to various configurations.

Before purchasing, please verify the dimensions to ensure compatibility with your cell type and specifications.
