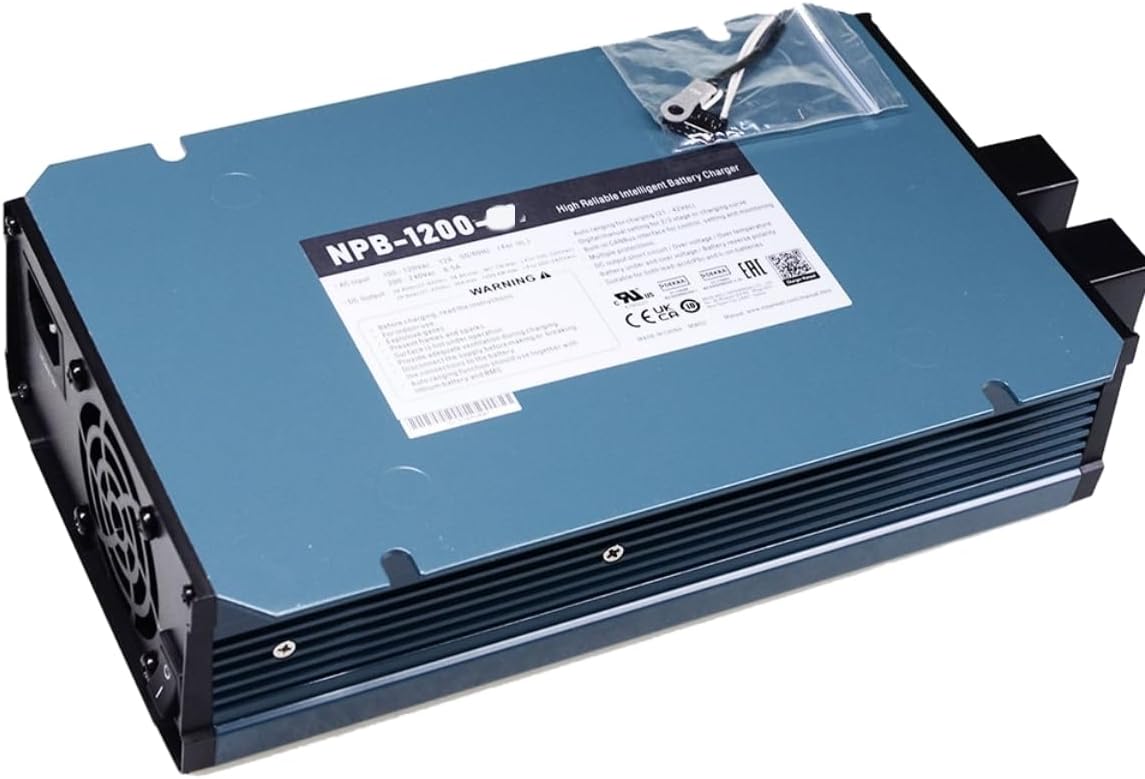

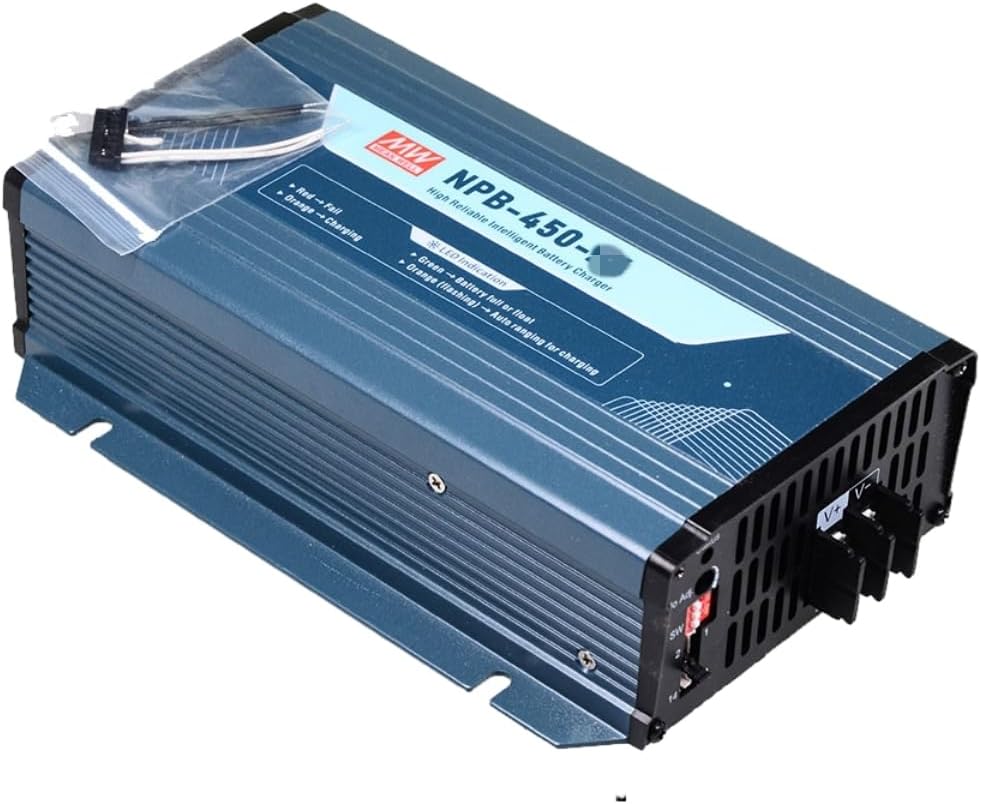

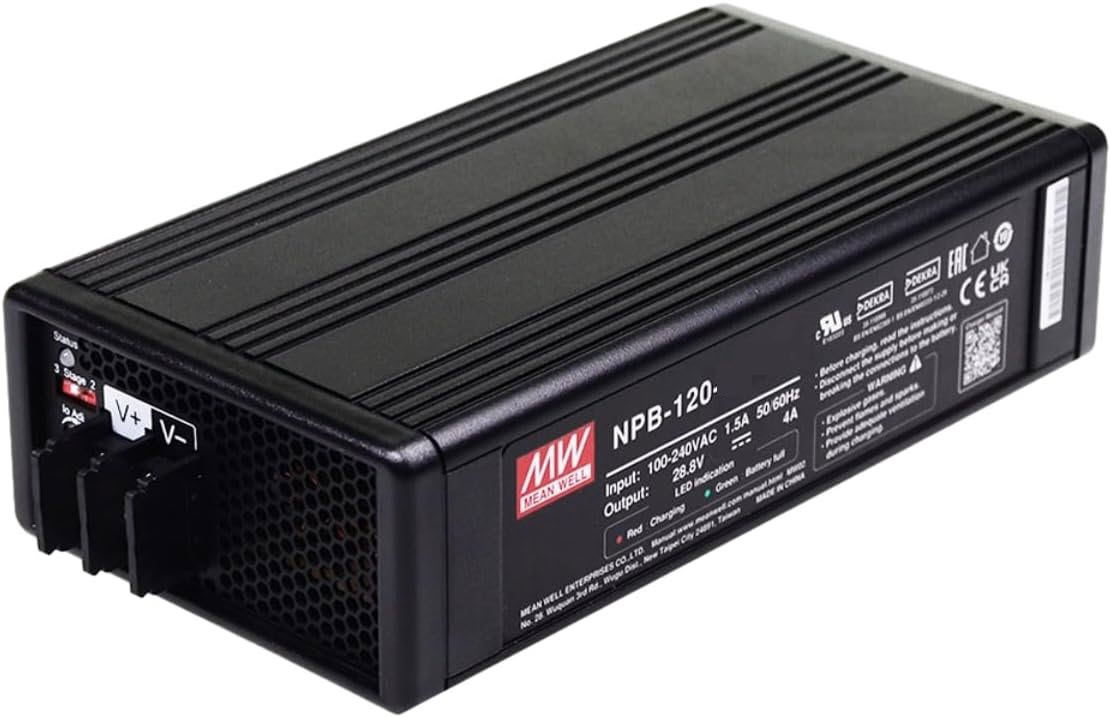

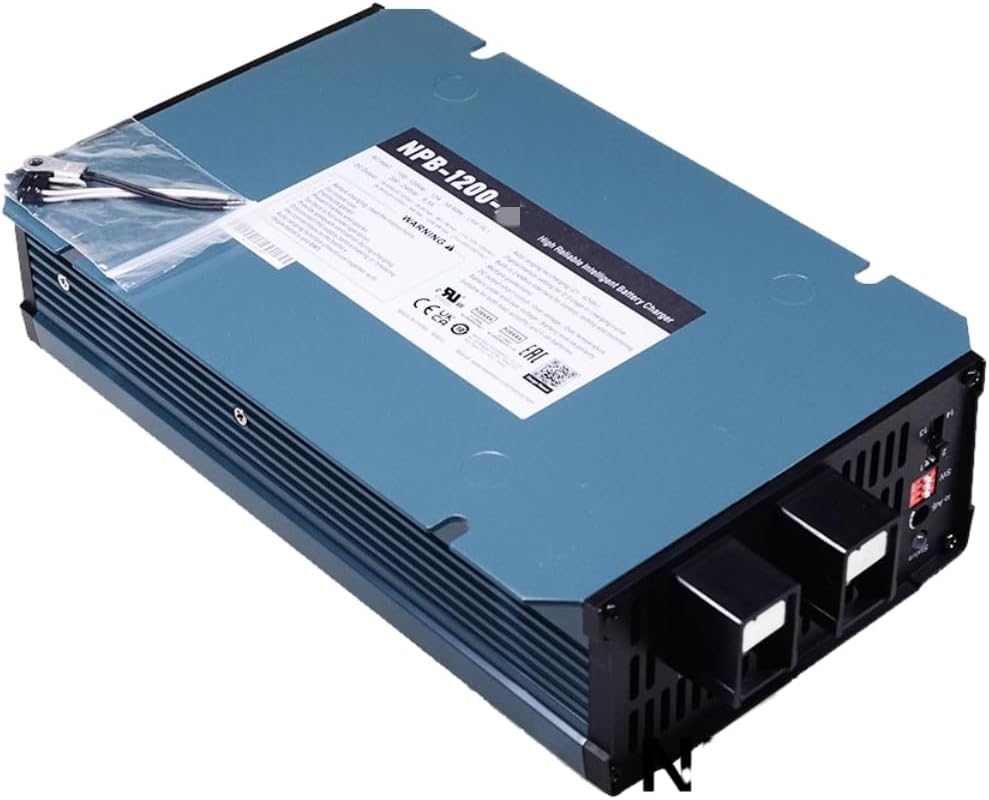

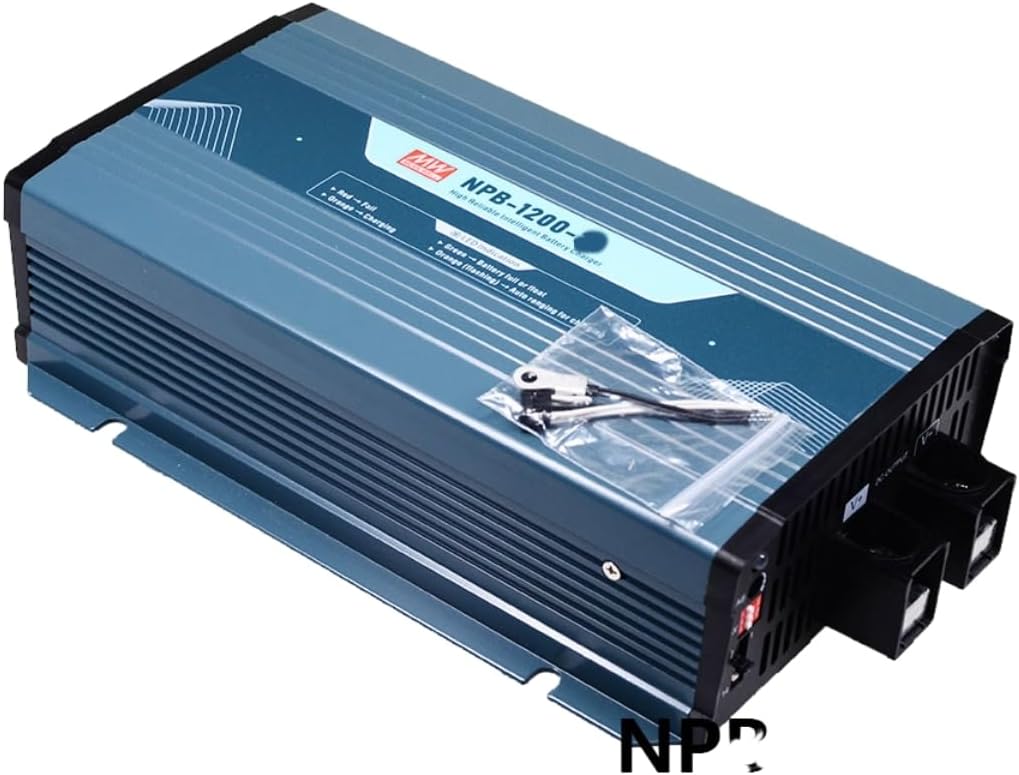

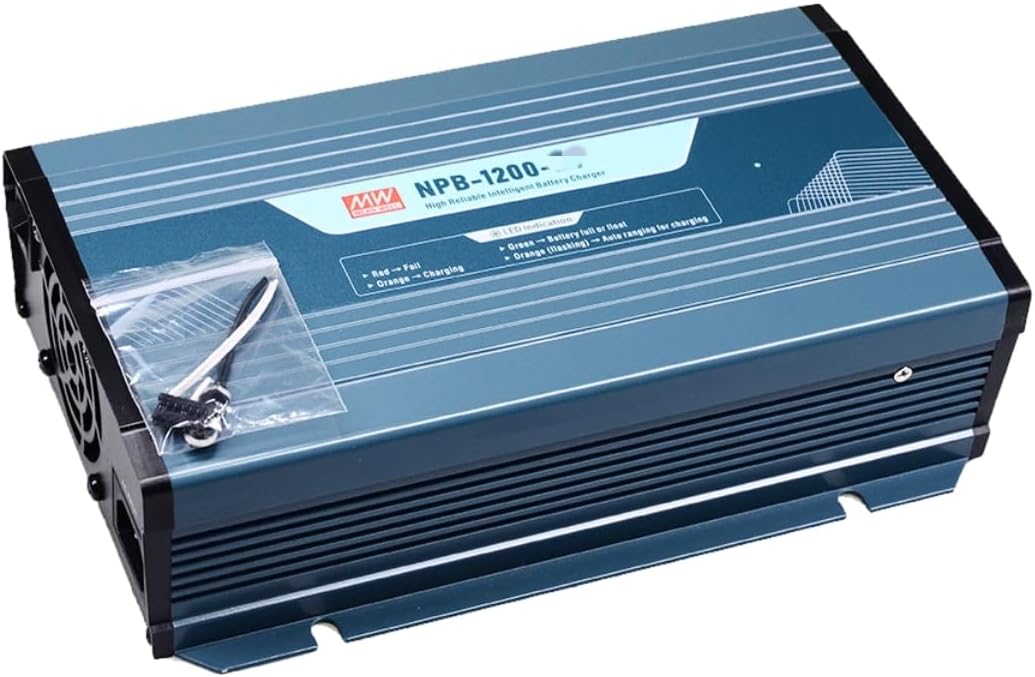

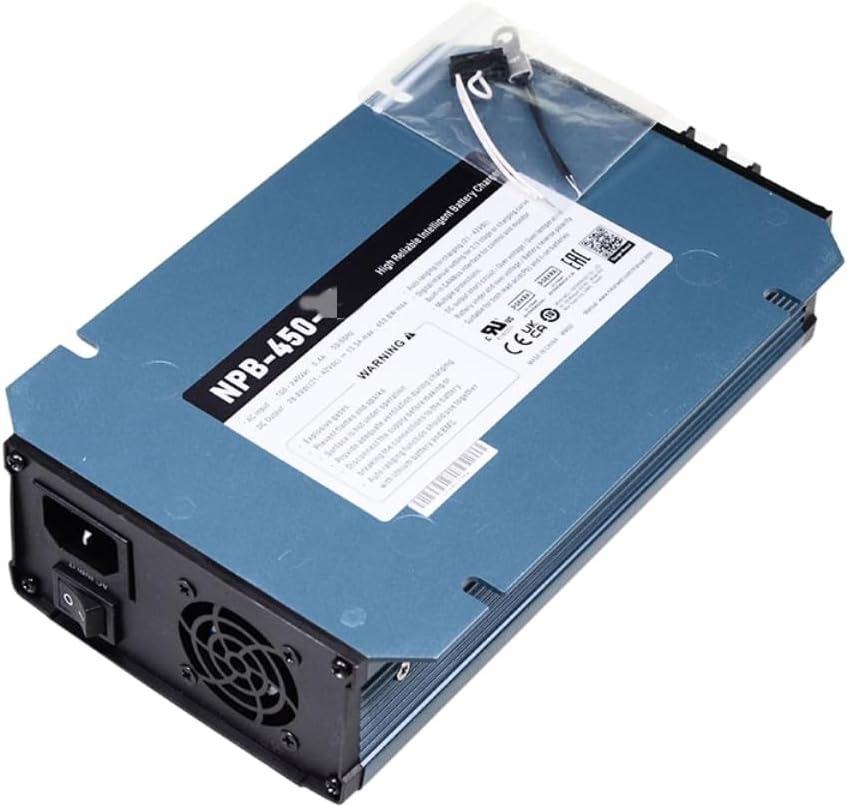

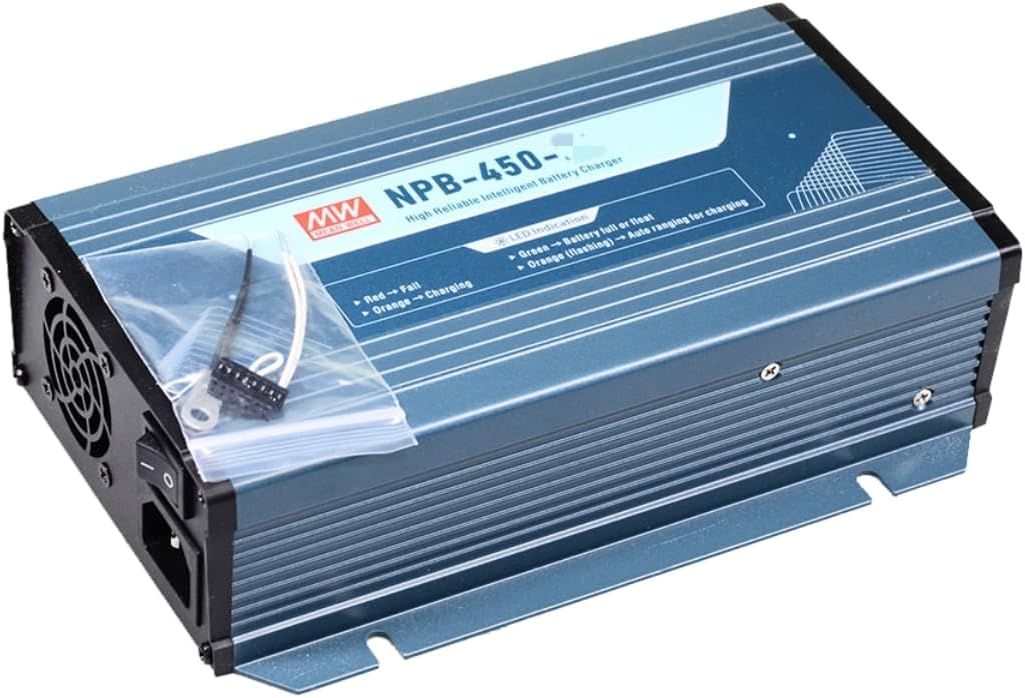

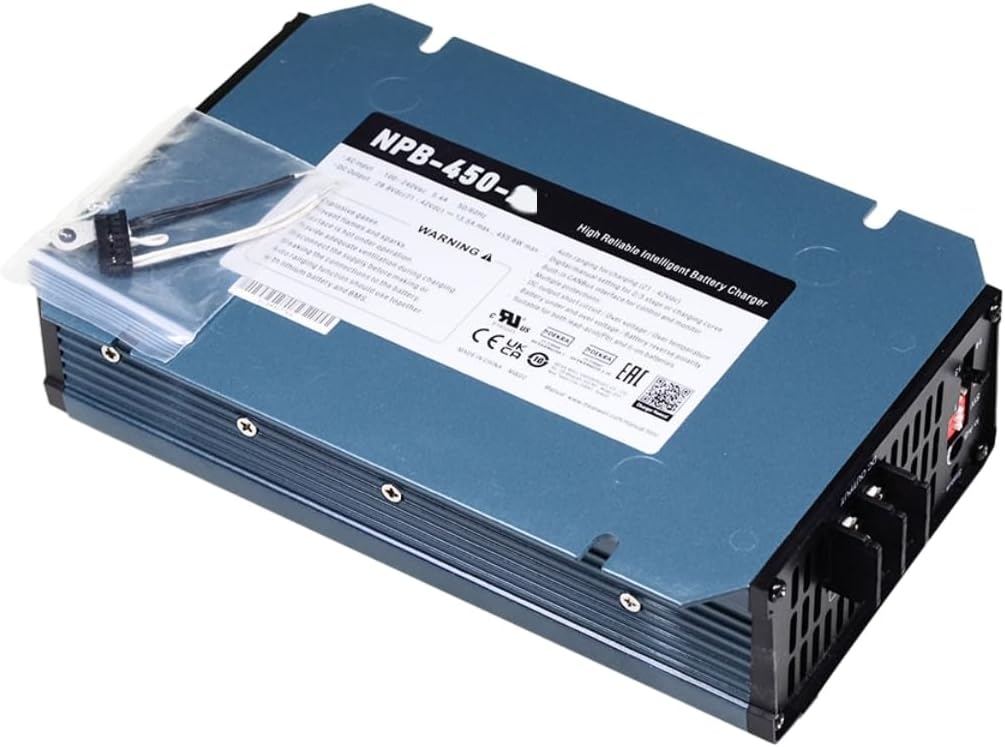

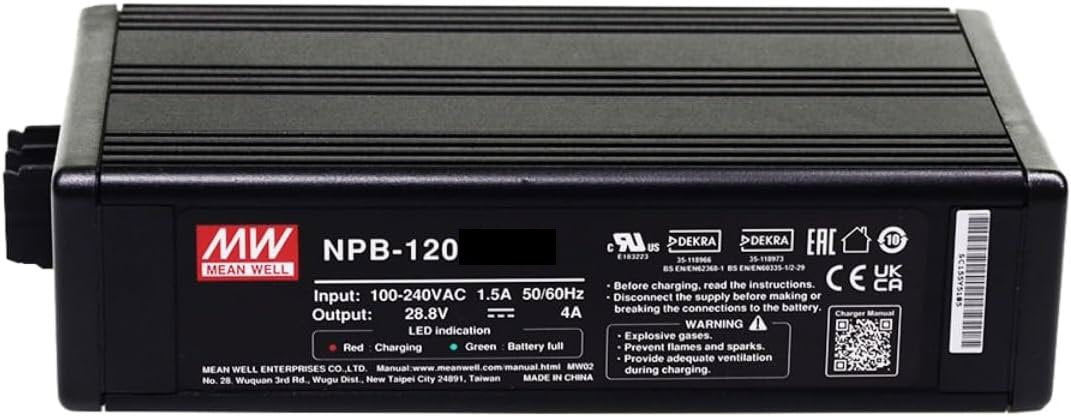

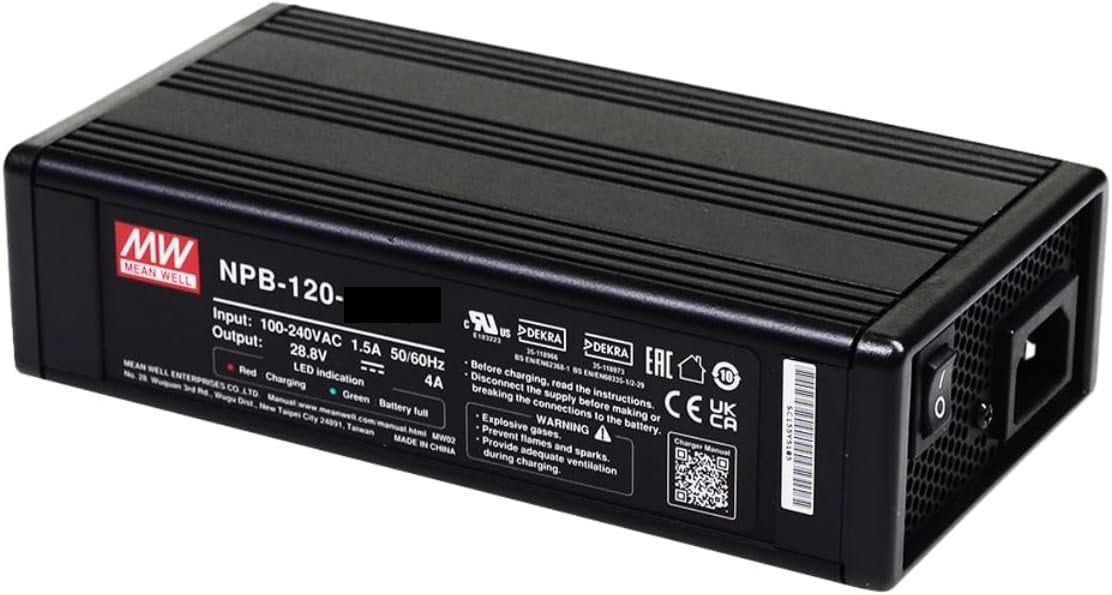

Battery Charger, 12/24/48V, 120W, 450W, 1,200W

In stock

$89.00 USD

~~$99.00 USD~~ $89.00 USD

Sale Sold out

Voltage 12V 24V 48V

Power 120W 450W 1200W

This is a high-quality, safety-certified AC-to-DC charger for DIY battery packs. It supports selectable 2-stage or 3-stage charging via DIP switches, and uses a proper CCCV (constant-current / constant-voltage) profile that works well for lithium packs when configured correctly (LFP, NMC, Lead Acid). It can also be used with sodium-ion packs that are designed for correct number of cells in series and not exceeding max cell voltage.

Charging Profile: CCCV (Lithium-Compatible)

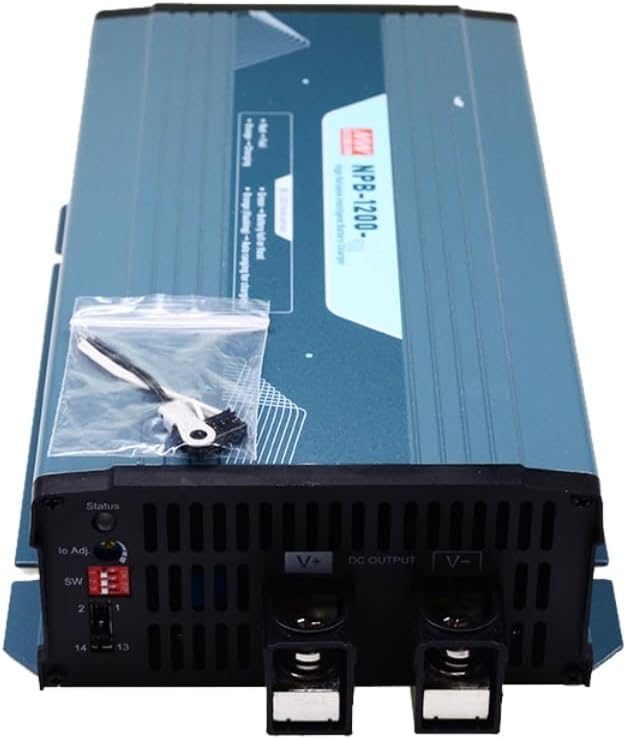

Charge modes: 2-stage or 3-stage selectable by DIP switch (CC → CV, with optional float stage)
Default curves: 4 built-in charging curves selectable by DIP switch (pick the closest profile, then fine-tune if needed)
Best for: Lead-acid and lithium-ion battery packs (LFP / NMC). Sodium-ion packs that use CCCV charging and are configured to the correct setpoints.

Electrical

AC Input: 90–264 VAC, 50/60 Hz (universal input) with built-in PFC
Adjustments: Output voltage and output current adjustable (panel adjust). Charging current is adjustable (typically 50–100% of rated current).
Status indication: Front-panel LED charging status indicator

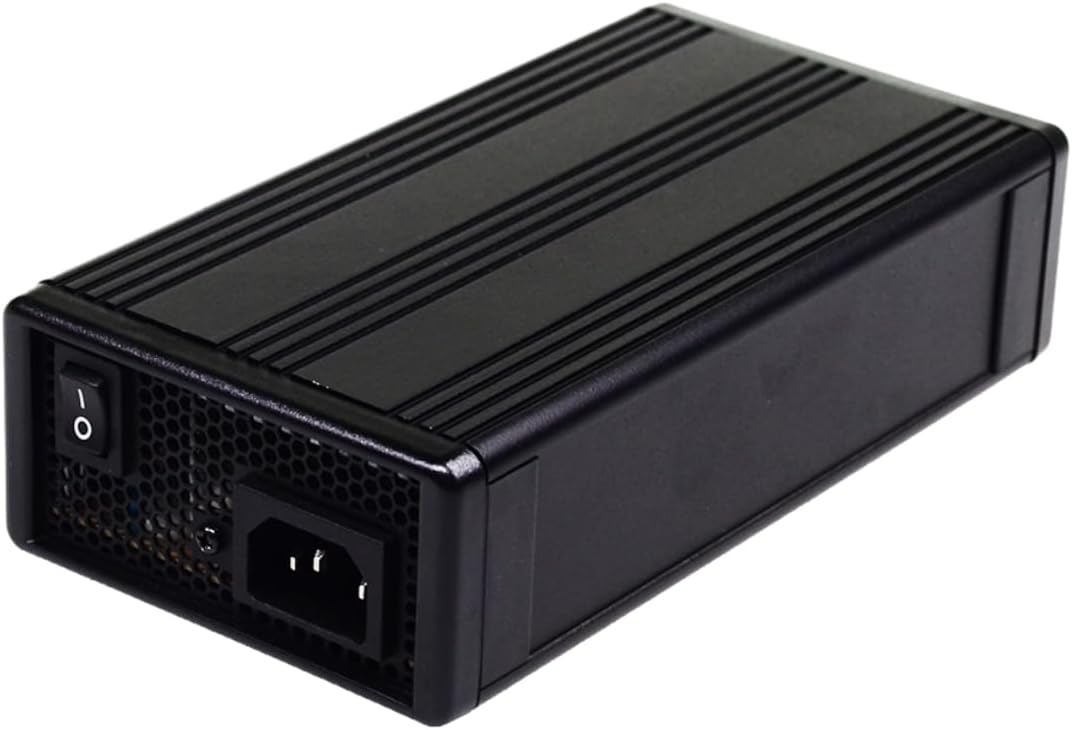

Power switch: Built-in AC on/off switch (very low standby draw when switched off)

Protections

Over-voltage, over-current, short-circuit, over-temperature protection
Reverse polarity protection: Internal fuse protection (do not rely on this as a routine “feature”—wire your pack carefully)

Mechanical / Interfaces

Cooling: Fanless and silent on the 120W/240W class (larger wattage variants may be fan-cooled)

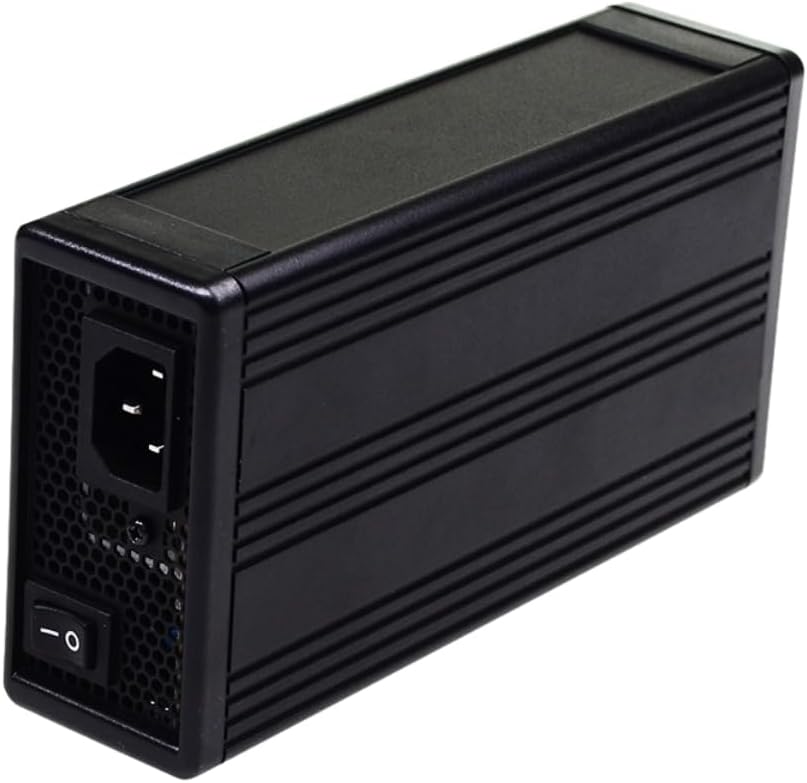

AC inlet: IEC 320-C14 (uses a standard computer-style power cord)

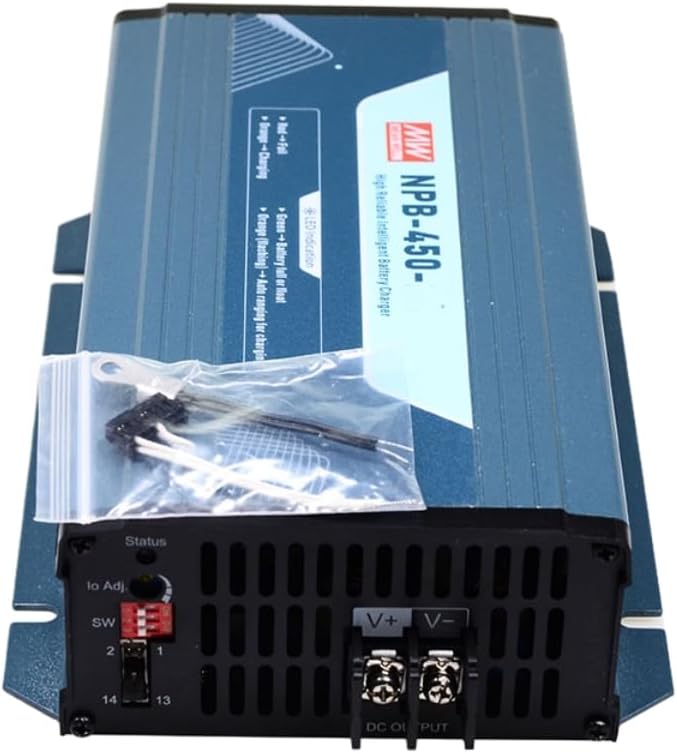

DC output options: Multiple connector styles depending on variant (commonly terminal block / cable styles)
Operating temperature: -30°C to +70°C (derating may apply at higher temps)

Compliance

Safety approvals: UL/EN 62368-1 and IEC/EN 60335-1 / 60335-2-29 (dual safety certification)

Important Notes (Lithium Packs)

Setpoints matter: You must set the correct charge voltage and current limits for your exact chemistry and series count.
No auto-detect: This charger does not “know” your pack chemistry—configure it before use.
BMS required: Always use a BMS and appropriate fuse/breaker for your pack.
Float stage: 3-stage mode adds a float voltage after the main charge—great for lead-acid, and optional for lithium depending on how you operate your pack.
