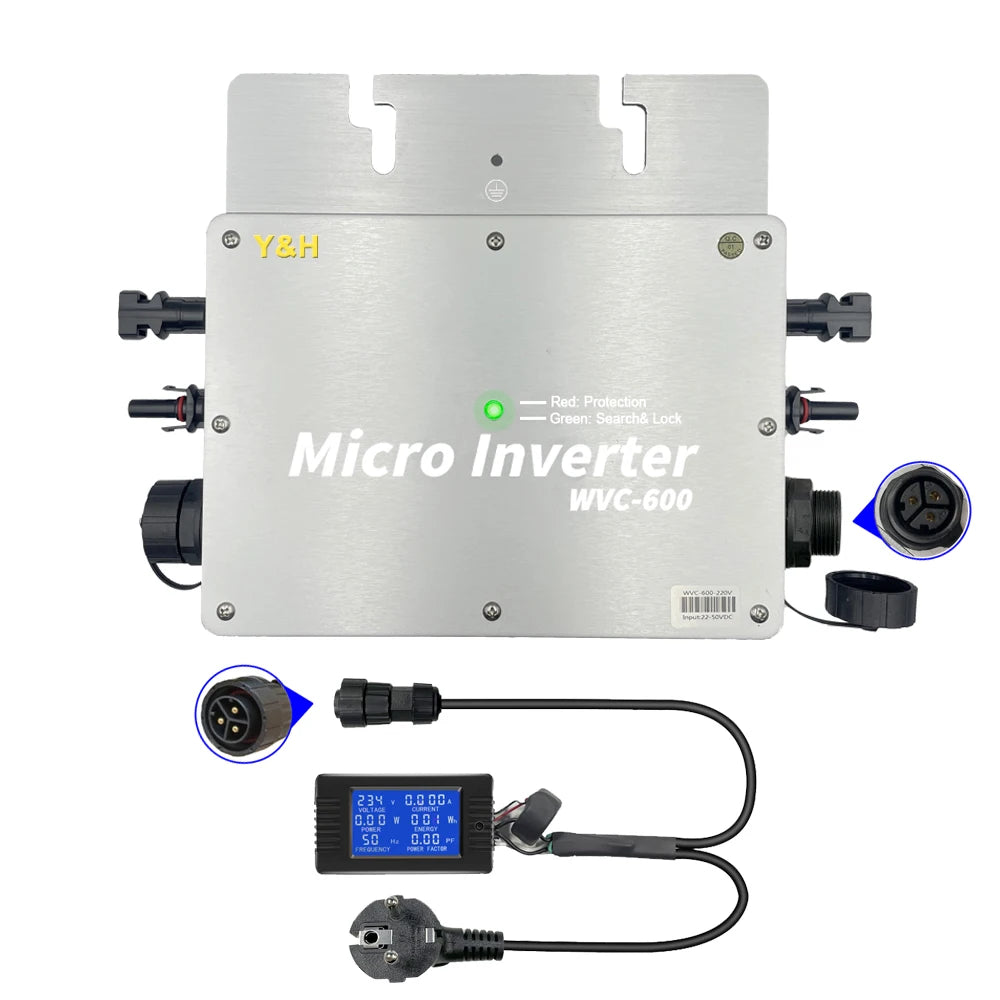

Grid-Tied Solar Microinverter 600W with MPPT

Small, grid-tied DIY solar.

This 600 W grid-tied microinverter converts DC power from one or two solar panels directly into AC power synchronized with the utility grid. It is commonly used by experienced DIYers, engineers, educators, and solar hobbyists for testing, demonstrations, and limited plug-in solar projects.

Not suitable for off grid or backup system unless you already have a battery inverter. This device requires an active utility grid and will automatically shut down during a power outage.

Quick highlights

• Up to 600 W AC output
• Integrated MPPT for 36 V-class solar panels

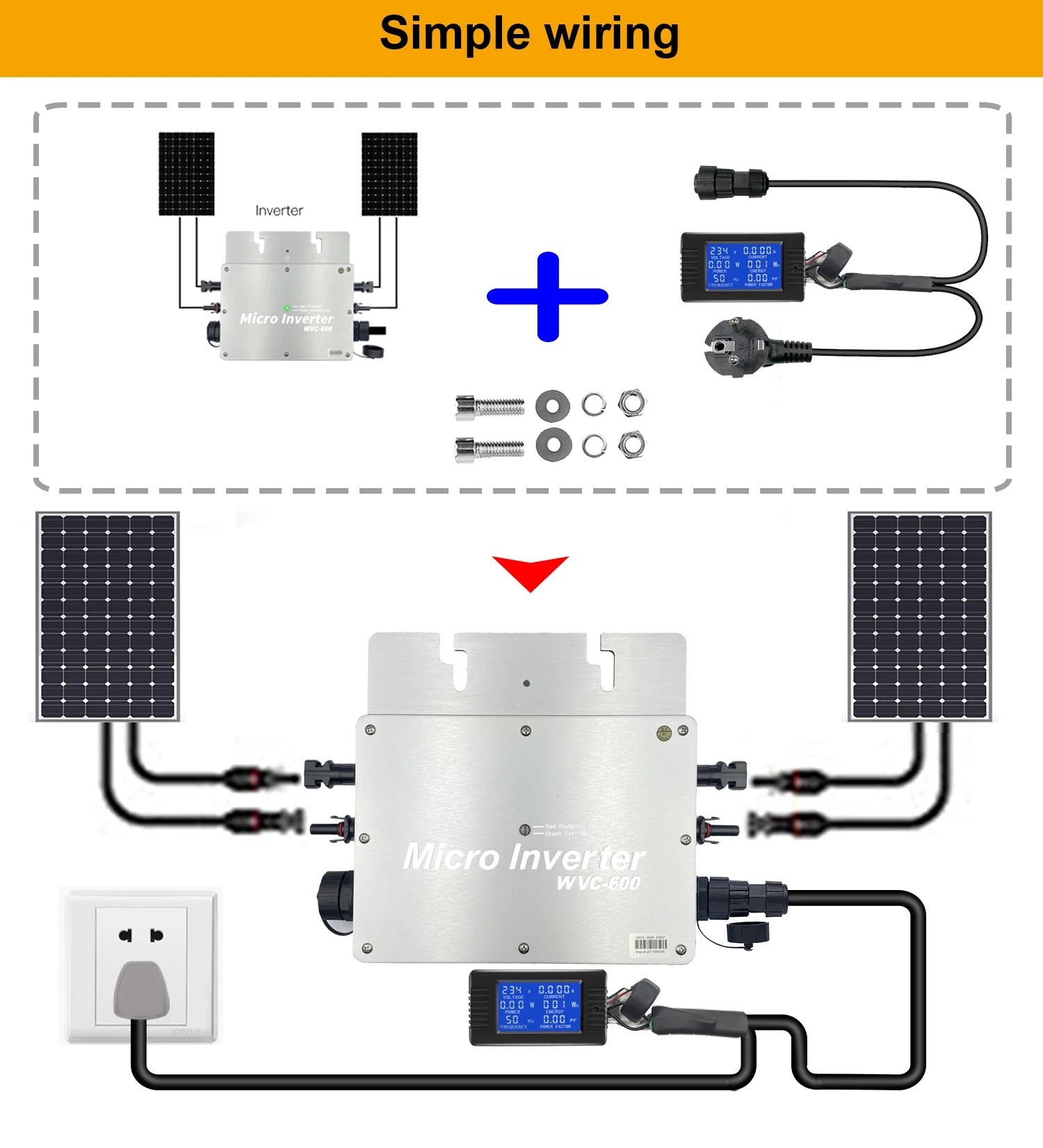

• Designed for 1–2 panels (250–300 W each)
• IP65 weather-resistant enclosure
• Automatic 50 / 60 Hz grid detection

Key Features

• Rated for up to 600 W AC output
• Integrated MPPT (Maximum Power Point Tracking)
• Designed for one or two standard 36 V-class solar panels
• Wide input voltage range for flexible panel matching
• Automatic 50 / 60 Hz grid detection
• IP65-rated enclosure for outdoor use
• Aluminum housing for passive cooling
• Built-in grid protection (over/under voltage, frequency, anti-islanding)

Electrical Specifications

• AC Output Power: Up to 600 W
• AC Output Voltage: 120 V
• AC Output Frequency: 50 / 60 Hz (auto-detect)
• Rated Output Current: 2.39 A

PV (DC) Input Specifications

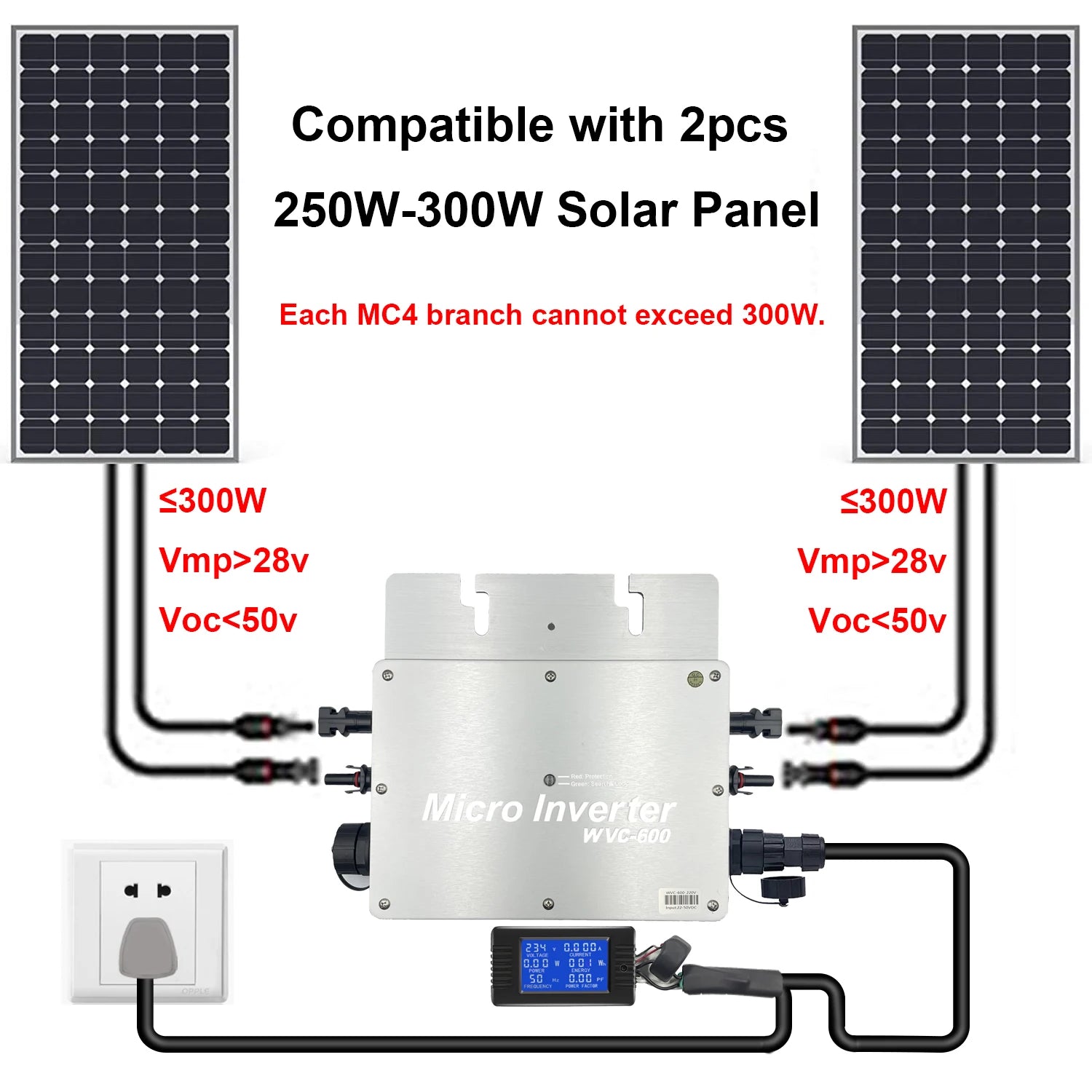

• Recommended PV Power: 2 × 250–300 W panels
• PV Operating Voltage (Vmp): 28–40 V DC
• PV Open-Circuit Voltage (Voc): 34–50 V DC (maximum)
• Maximum Input Current: 26 A

Environmental & Mechanical

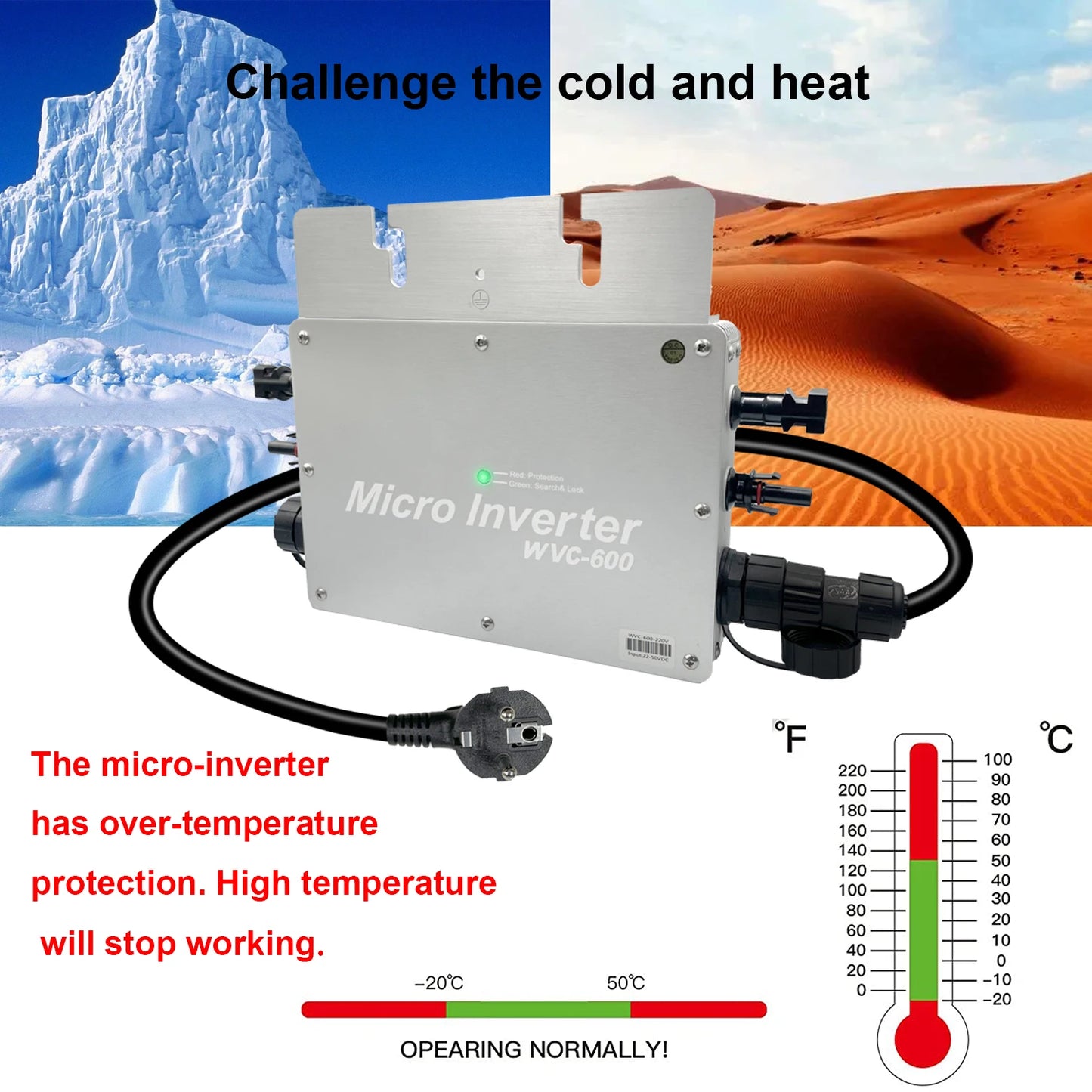

• Operating Temperature: −40 °C to +65 °C
• Cooling: Passive (fanless)
• Enclosure Rating: IP65 (weather resistant)

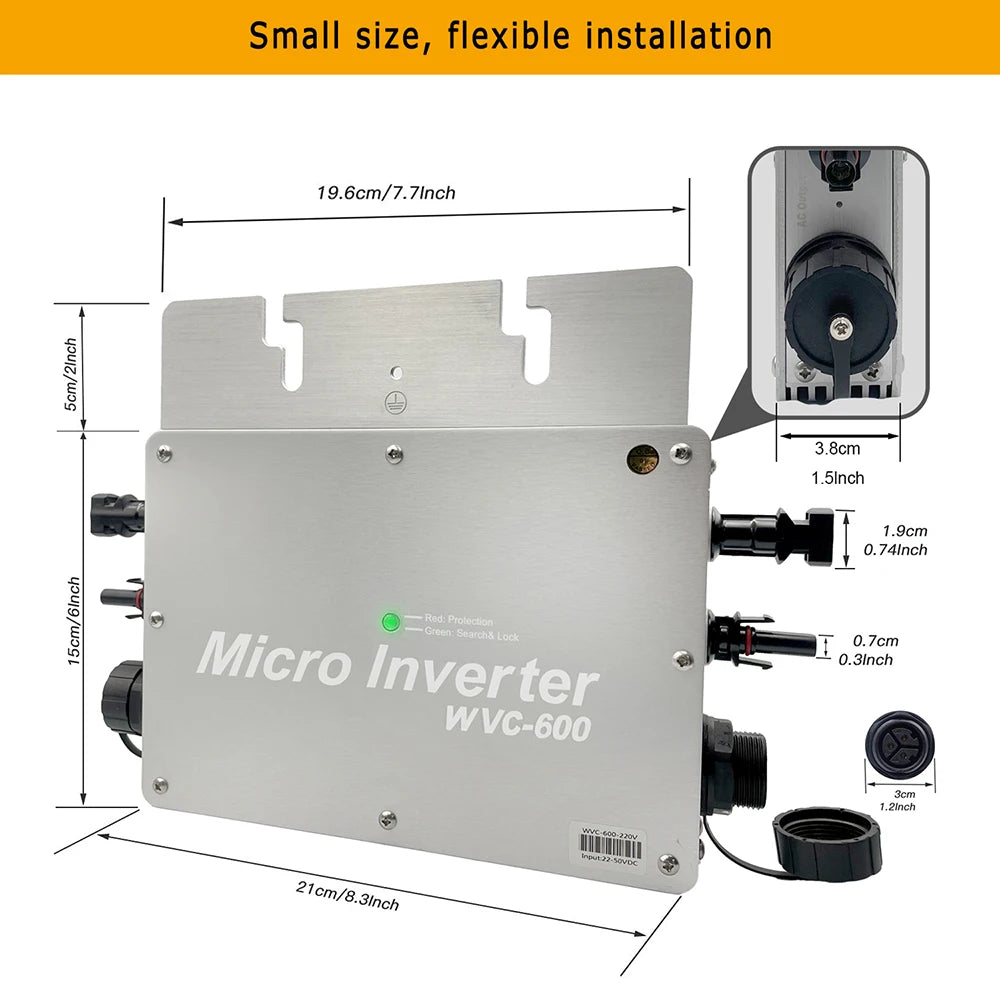

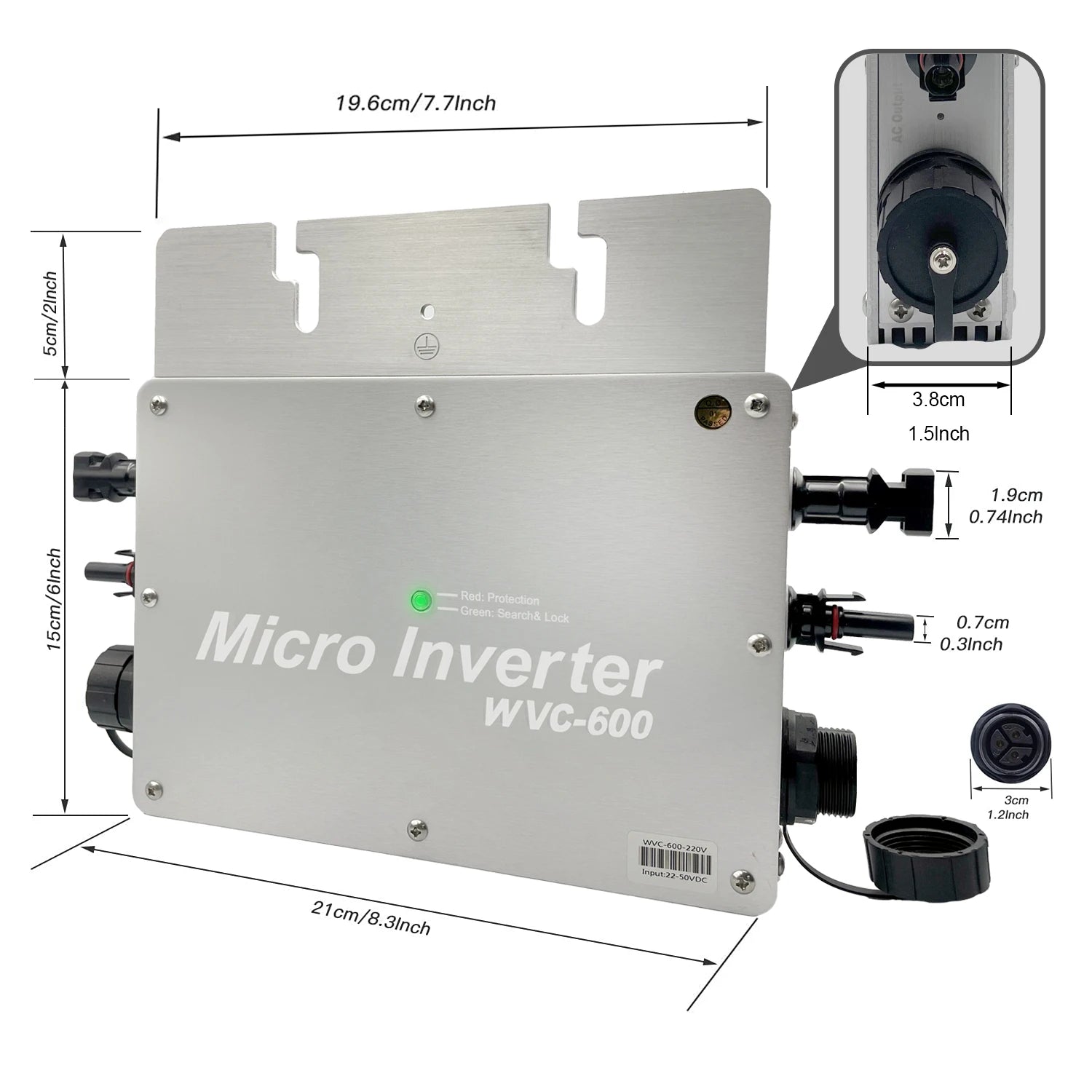

• Dimensions: 283 × 200 × 41.6 mm
• Weight: 1.56 kg

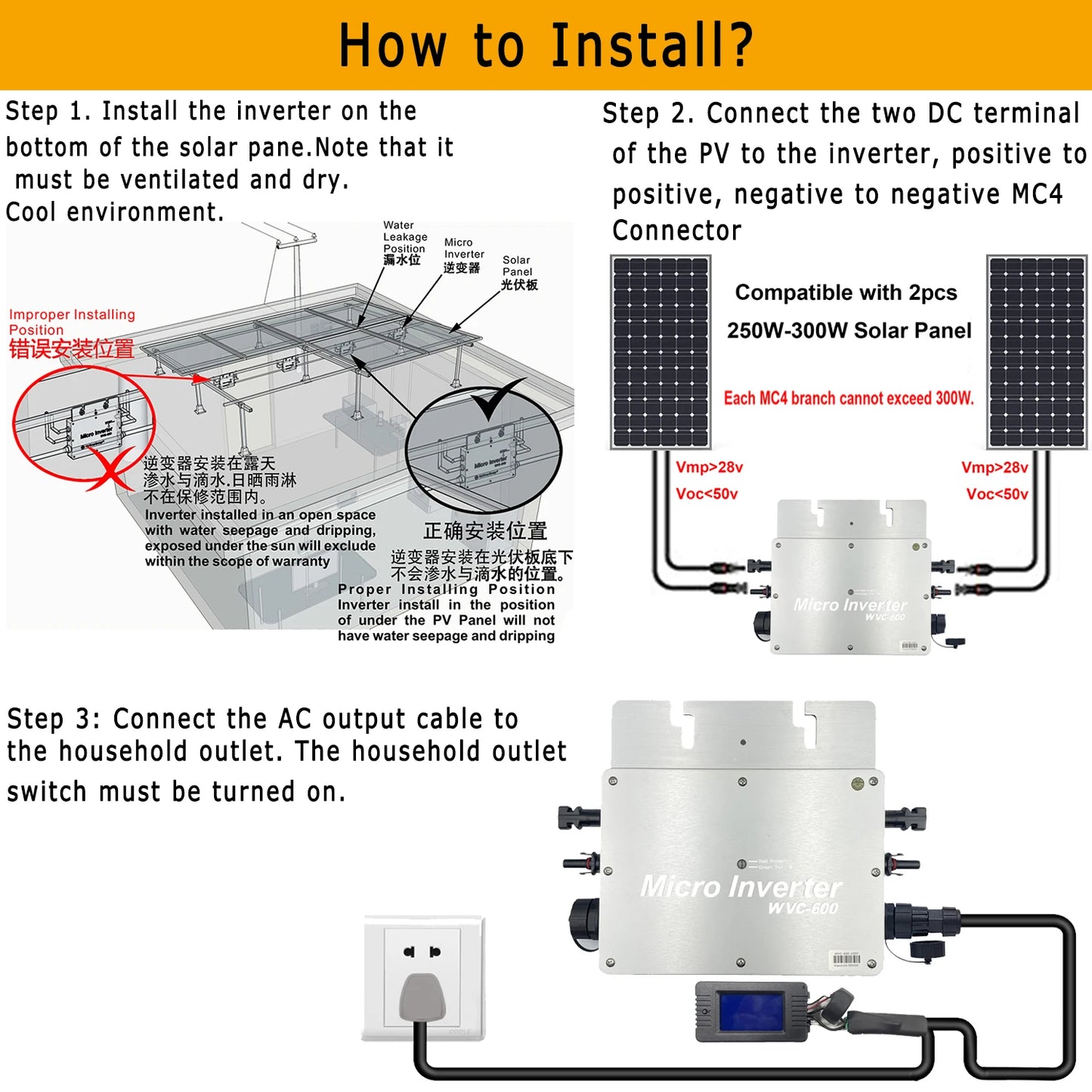

Usage Notes & Limitations

• PV panel voltage must remain within the MPPT operating range
• Do not exceed maximum PV voltage or power ratings
• DC polarity must be correct at all times
• Designed for grid-tied operation only (no off-grid or backup capability)
• Unit will automatically shut down if grid power is lost

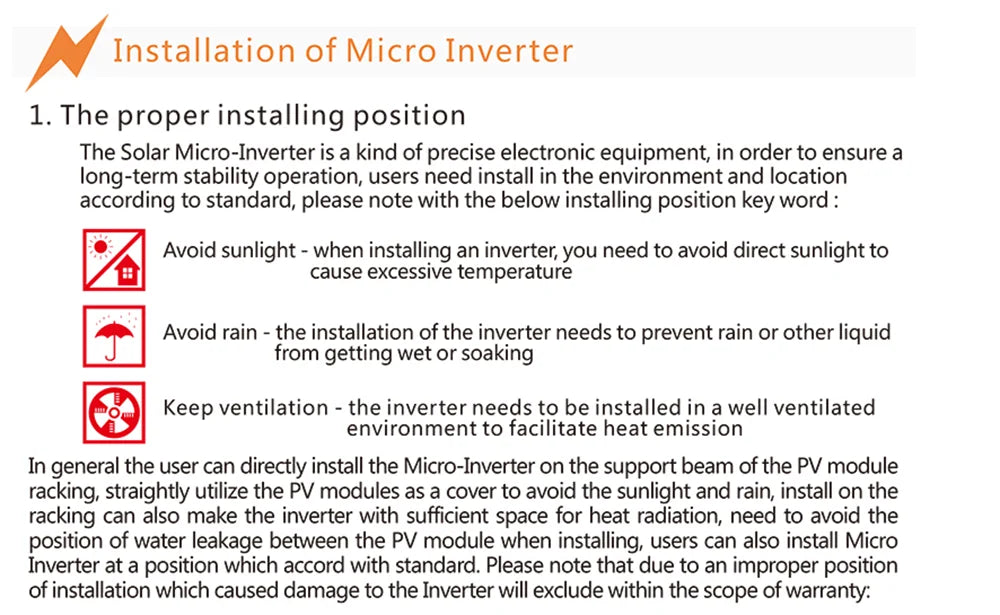

• Install in a ventilated location, protected from direct sun and standing water

Important safety & compliance notice (U.S.)

This is a grid-connected power-conversion device. It is not UL-listed and is not certified to UL 1741 or IEEE 1547. As a result, it may not be permitted for permanent residential installation in many U.S. jurisdictions.

Use of this product may require review by a licensed electrician and approval from the local Authority Having Jurisdiction (AHJ) and utility. It is the buyer’s responsibility to verify compliance with all applicable NEC, utility interconnection, and local code requirements.

This product is best suited for educational use, temporary setups, off-permit experimentation, or locations where such equipment is allowed.
