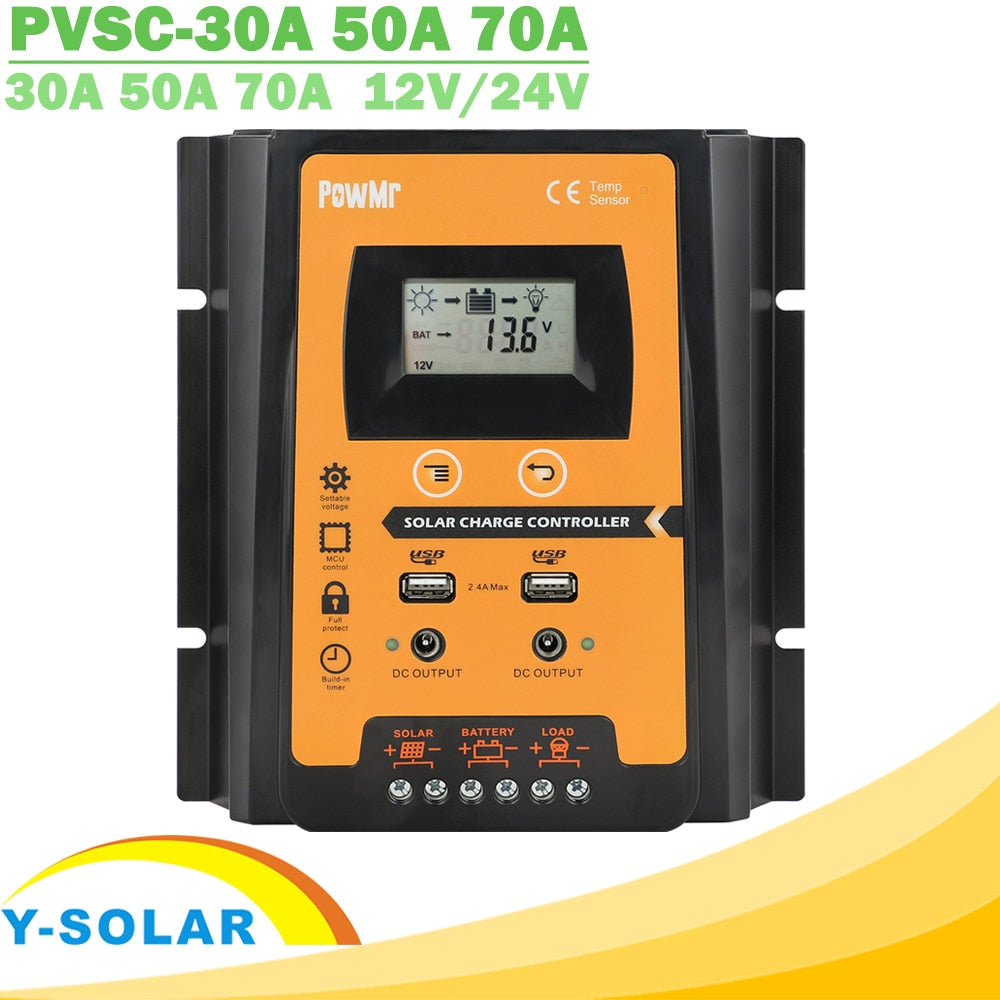

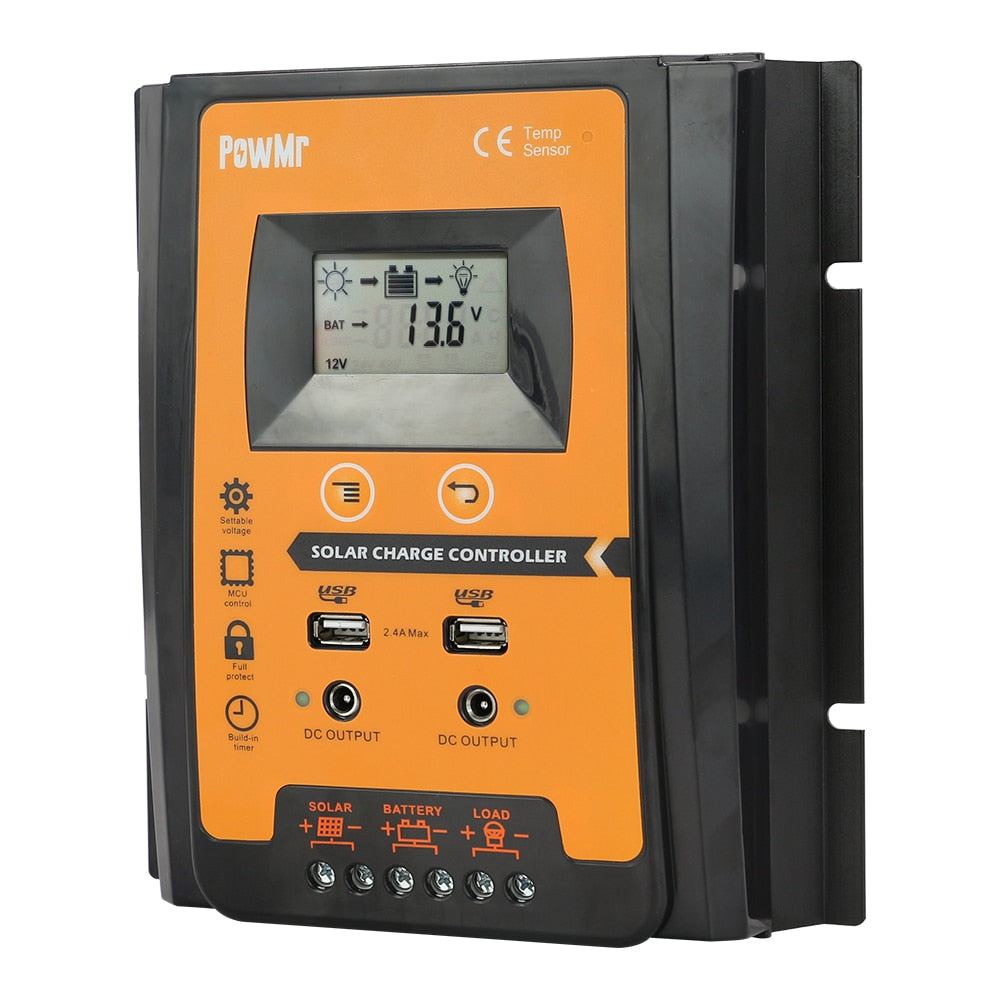

MPPT Solar Charge Controller 12~24V
Couldn't load pickup availability
Features:
- Automatic identification system voltage, 12/24V auto recognition.
- LCD displaying and double button operation.
- High efficiency intelligent compatible PWMMPPT 3-stage charging mode.
- The load control mode can be selected, the timer function can be reset for street light at night.
- Discharge capacity control.
- Discharge counter of amp-hour.
- Working storage function: record the total run time of system, record timers of error during running time, record times of full charged battery.
- Protection:
- Over voltage protection
- short circuit protection
- over load protection
- overcharge protection
- over-discharge protection.
- Accurate temperature compensation, correcting the charging and discharging voltage automatically, improving the battery lifetime.
- Reverse connected protection.

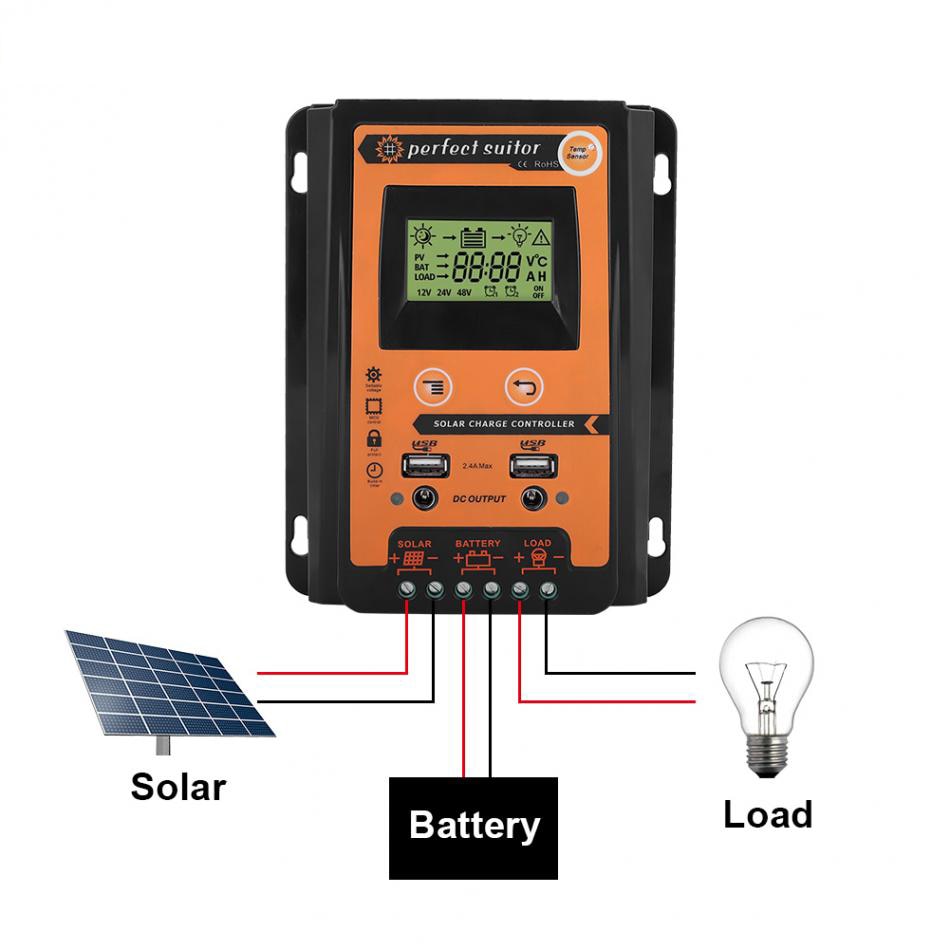

- Solar panels, battery, solar charge controller positive poles are all connected together, adopting negative MOSFET in series control circuit.
Parameters:
|

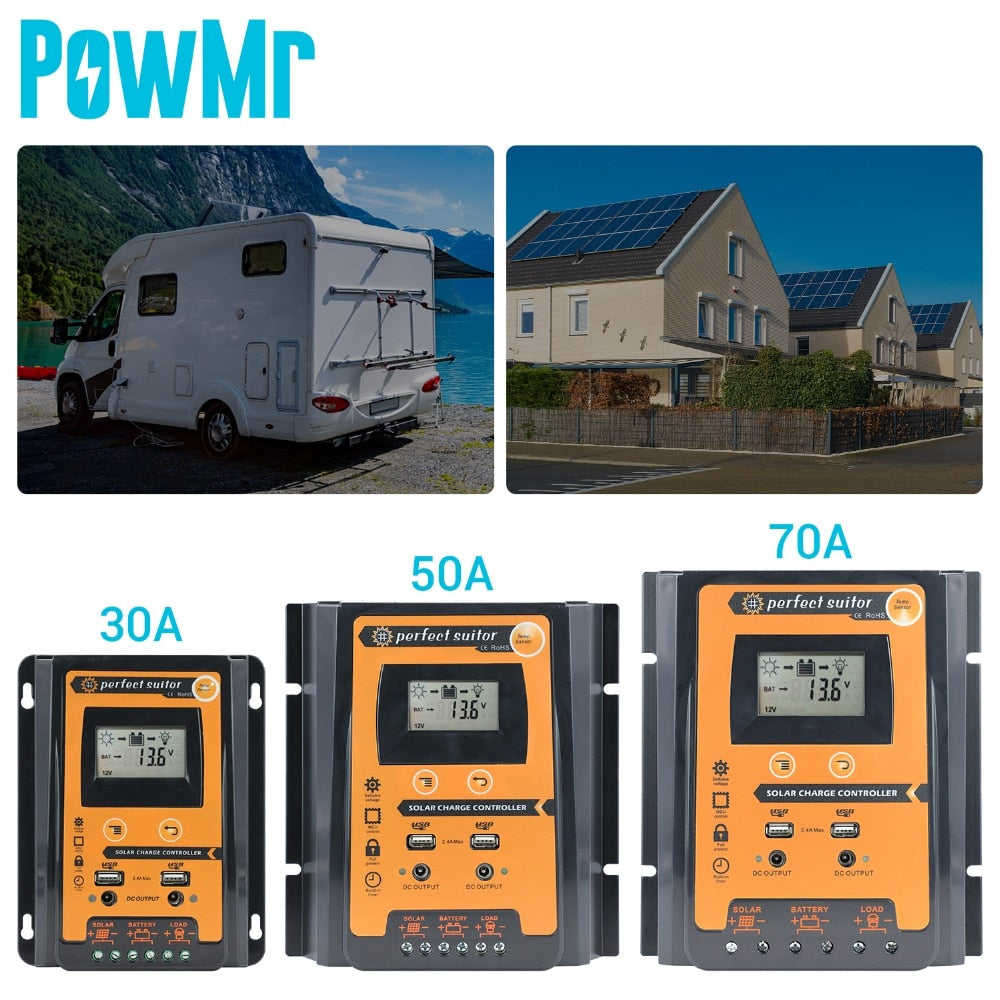

Model |
PVSC-30A |
PVSC-50A |
PVSC-70A |
|
System Voltage |
12V / 24V |
||
|
Max. Input Voltage of sola panel |
55V |
||
|
Self-consumptlon |
≤10mA |
||
|
Max. charge current |
30A |
50A |
70A |
|
Max. discharge current |
|||
|
LVD |
11.0V ADJ 9V ┈ 12V; ×2/24V |
||
|
LVR |
12.6V ADJ 11V ┈ 13.5V; ×2/24V |
||
|
Float Voltage |
13.8V ADJ 11V ┈ 13V; ×2/24V |
||
|
Boost charging |
14.4V; ×2/24V Batler Voltage less than 12V start boost charging 2 hours |
||
|
Battery Ovev Voltage Protection |
16.5V;×2/24V |
||
|
Reverse Connection Protection |
yes |
||
|
Load Over Current Protection |
Yes,each two minutes restart once |
||
|
Temperature Compensation |
-24 mV/℃ for 12V system;×2/24V |
||
|
Working Temperature |
-20℃ ┈ +55℃ |
||
|
Waterproof grade |
IP32 |
||
|

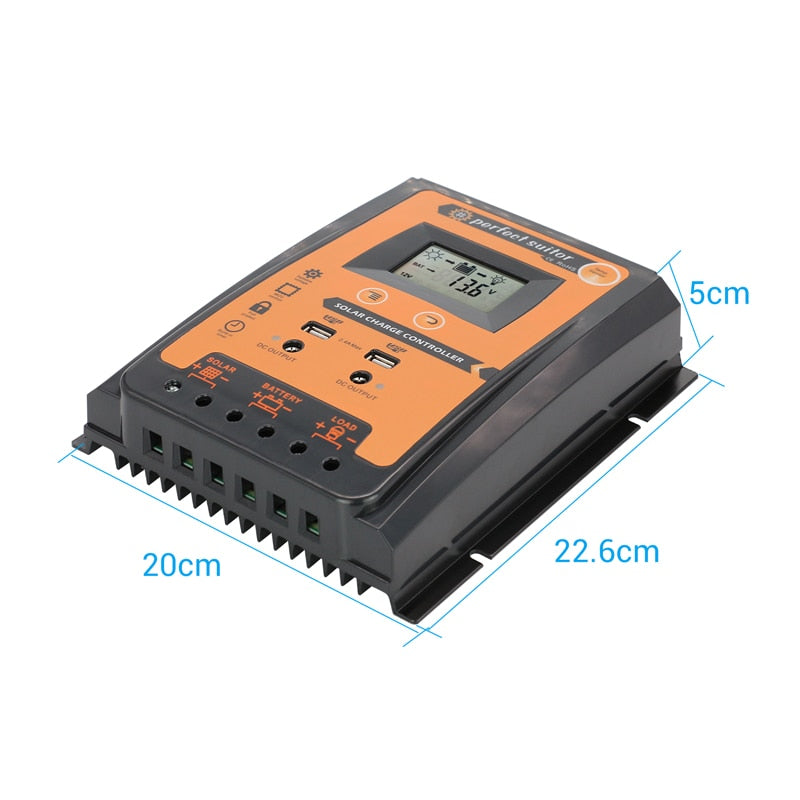

Size (mm) |
175.9×139×40.1 |
209.3×191.7×52.9 |
229.4×201×54.7 |
|
USB |
5V 2.1A |
||
|
DC output |
12V / 24V |
||
|
Net weight (kg) |
0.38 |
0.75 |
1.16 |
Brand Name: PowMr
Certification: CE
Origin: CN(Origin)
Model Number: PVSC Series
is_customized: Yes
Application: Charger Controller
Application: Voltage Controller
Application: Collector Controller
Application: Lighting Controller
Application: Solar System Controller
Application: Solar Working Station
Maximum Current: 70A 50A 30A
Battery Voltage: 12V 24V Auto
Max. Input Voltage of sola panel: 55V
Float Voltage: 13.8V(adjustable)
Low Voltage Disconnect Voltage: 11V(adjustable)
Low Voltage Reconnect Voltage: 12.6V(adjustable)
Reverse Connection Protection: yes
overcharge and low voltage protection: yes
Dual USB: 5V 2.1A
DC output: 12V / 24V
Item: 30A 50A 70A MPPT Solar Charge Controller
Product: Dual USB Solar Regulator
