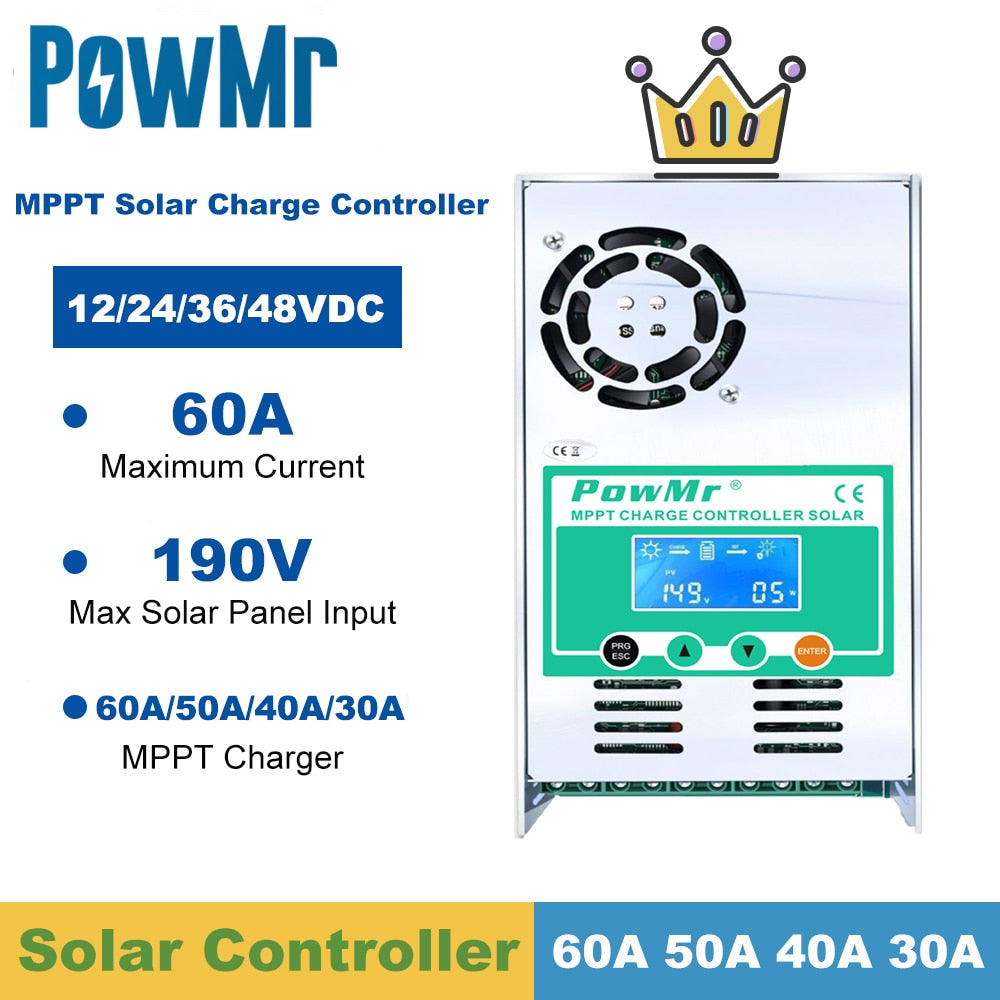

MPPT Solar Charge Controller 12~48V
MPPT Solar Charge Controller 12~48V
In stock
Couldn't load pickup availability
Share
MPPT Solar Charger Controller ,12V 24V 36V 48V. Works with Lead acid and Lithium batteries. Varients for 30A, 40A, 50A, and 60A.
Features:
- Built-in DSP controller with high performance
- Automatic battery voltage detection 12V/24V/36V/48V
- Three-stage charging optimized for battery performance
- Multi-function LCD displays
- Reverse polarity protection of solar panel
- Overcharge protection
- Easy installation
- Suitable for both Lead Acid and Lithium battery types
Brand Name: PowMr
Certification: CE
Model Number: MPPT 60A 50A 40A 30A
Charging mode: MPPT Maximum power point tracking automatically
Dispaly: Backlight LCD Controller
Battery Voltage: 12V 24V 36V 48V Auto
Battery Type: Lead Acid/Vented/ Sealed / Gel / NiCd /AGM/ Lithium battery
Product Specifications:
| Model Name | MPPT-30A | MPPT-40A | MPPT-50A | MPPT-60A |
| Charging mode | MPPT Maximum power point tracking automatically | |||
| Charging | 3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge | |||
| System type | DC12V/24V/36V/48V Recognition automatically | |||
| System voltage automatic recognition | 12V system (DC9V-DC15V) | |||
| 24V system (DC18V-DC29V) | ||||
| 36V system (DC30V-DC39V) | ||||
| 48V system (DC40V~DC60V) | ||||
| Soft start time | ≤1S | |||
| Dynamic response and recovery time | ≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency) | |||
| PV utilization | ≥99% | |||
| Input specification | ||||
|
Voc from PV( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. ) |
12V system (DC20V~DC80V) | |||
| 24V system (DC37V~DC105V) | ||||
| 36V system (DC50V~DC160V) | ||||
| 48V system (DC72V~DC160V) | ||||
| The maximum PV input voltage (Voc) | DC190V(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.) | |||
|
The maximum PV input power(The total power rated of PV can’t be over this watt that will break the controller.) |
12V system (360W) | 12V system (480W) | 12V system (600W) | 12V system (720W) |
| 24V system (720W) |
24V system (960W) |
24V system (1200W) | 24V system (1440W) | |
| 36V system (1080W) | 36V system (1400W) | 36V system (1800W) | 36V system (2100W) | |
| 48V system (1440W) | 48V system (1700W) | 48V system (2200W) | 48V system (2800W) | |
| Output specification | ||||
| Selectable battery type(default is Sealed) | Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user) | |||
| Absorption Charging Voltage | Refer to Batteries charging reference | |||
| Floating Charging Voltage | Refer to Batteries charging reference | |||
| Overcharging protection voltage | 12V system (15V) | |||
| 24V system (30V) | ||||
| 36V system (45V) | ||||
| 48V system (60V) | ||||
|
Rated output current |
30A | 40A | 50A | 60A |
| Temperature Coefficient | ±0.02%/ centi-degree | |||
| utomatic temperature compensation | 14.2V-(Max temperature-25 centi-degree)*0.3 | |||
| Output voltage ripple-peak | 100mV | |||
| Output voltage accurac | ≤±1% | |||
| Input Anti-intrusion protection | yes | |||
| Temperature Protection | 75°C | |||
| Temperature increased protection |
Output power will reduce when it’s more 70 °C Output power will be normal when it’s less 55 °C |
|||
| Fan-on temperature | >40 °C | |||
| Fan-off temperature | <35 °C | |||
| Acoustic noise | ≤40dB | |||
| Cooling way | Forced air cooling | |||
| Components | Imported materials, Accord to EU standards, Industrial grade range. | |||
| Environmental requirements | Meet 2002/95/EC; No cadmium, hydrides and fluorides | |||
| Security Level | Accord to CE, PSE, FCC, EMC, EN60950 | |||
| Electromagnetic Compatibility | Accord to EN61000, EN55022, EN55024 | |||
| Enclosure | IP21 | |||
| Net weight(Kg) | 1.1 | |||
| Gross weight(Kg) | 1.2 | |||
Cooling way: Forced air cooling
Voc from PV (12V battery): DC20V~DC80V
Voc from PV (24V battery): DC37V~DC105V
Voc from PV (36V battery): DC50V~DC160V
Voc from PV (48V battery): DC72V~DC160V)
